Module 1 Formstorming

Weekly Activity Template

Justin Martin

Project 1

Module 1

For the first formstroming activity I chose items around my office/studio. This consisted of a dual USB, spray deodorant, funnel, spray bottle, awl, lead sharpener, altoids tin and roll of thread. These were a combination of simple complex objects.

Activity 1

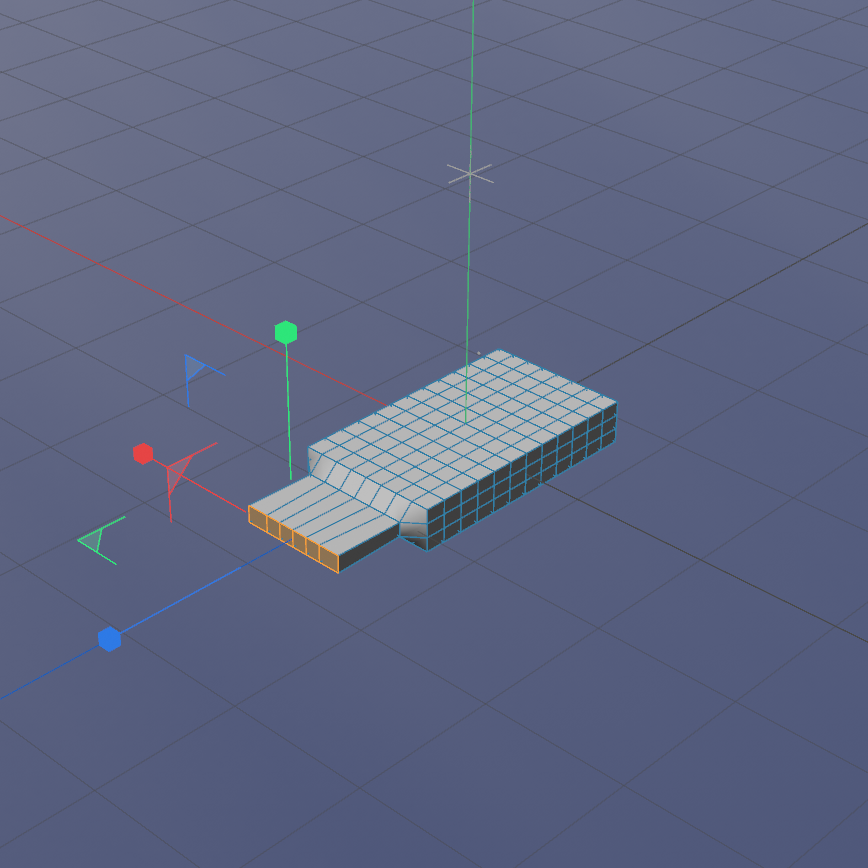

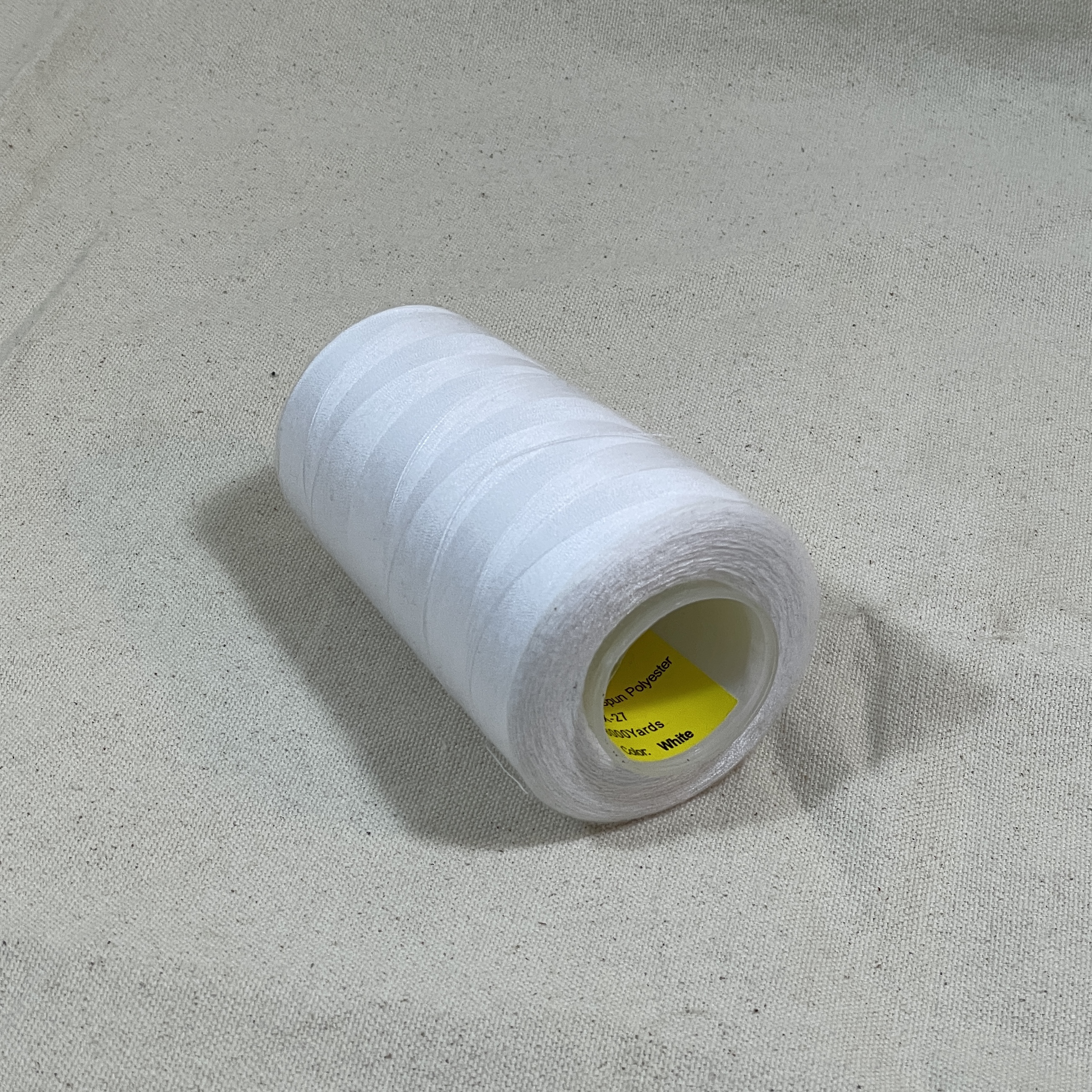

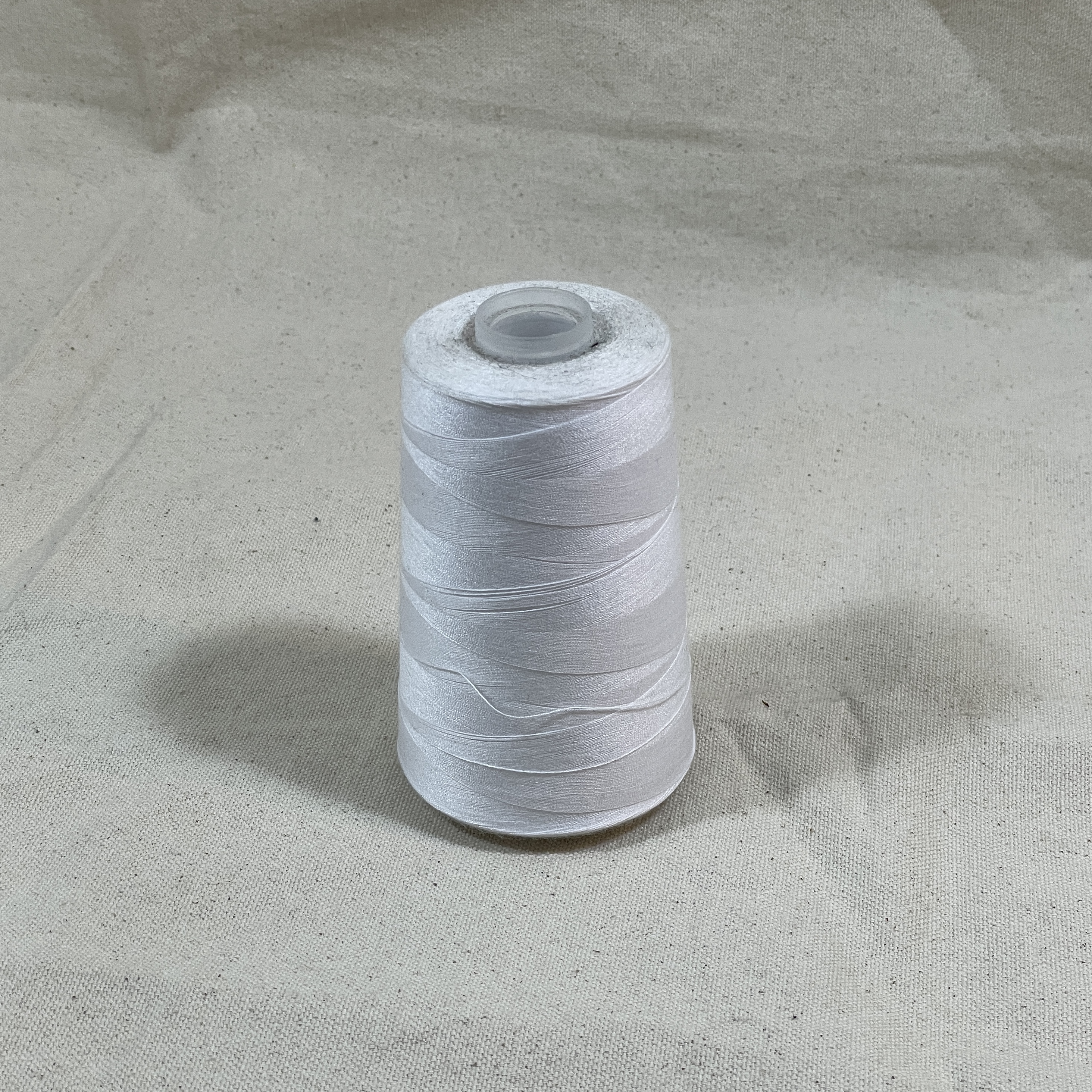

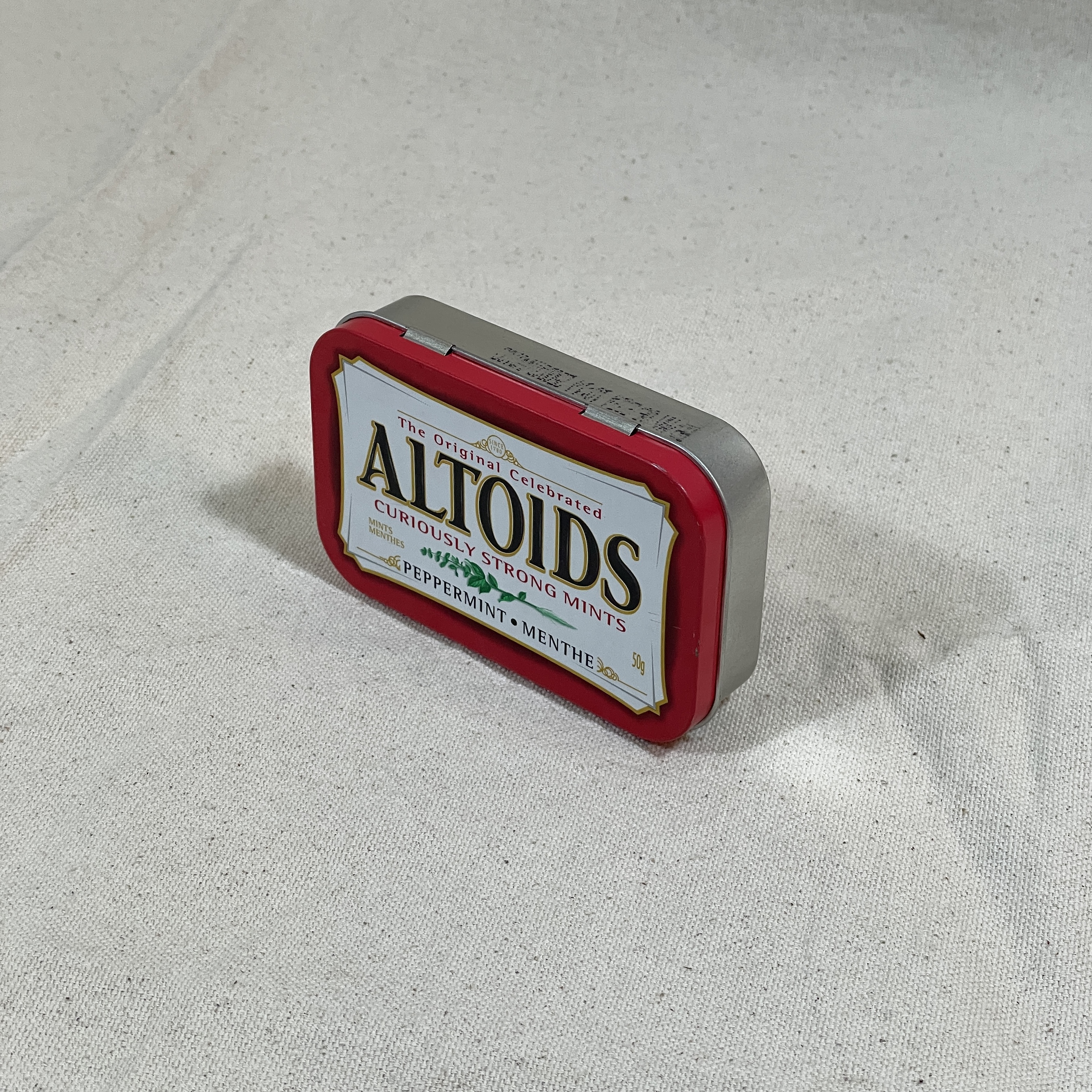

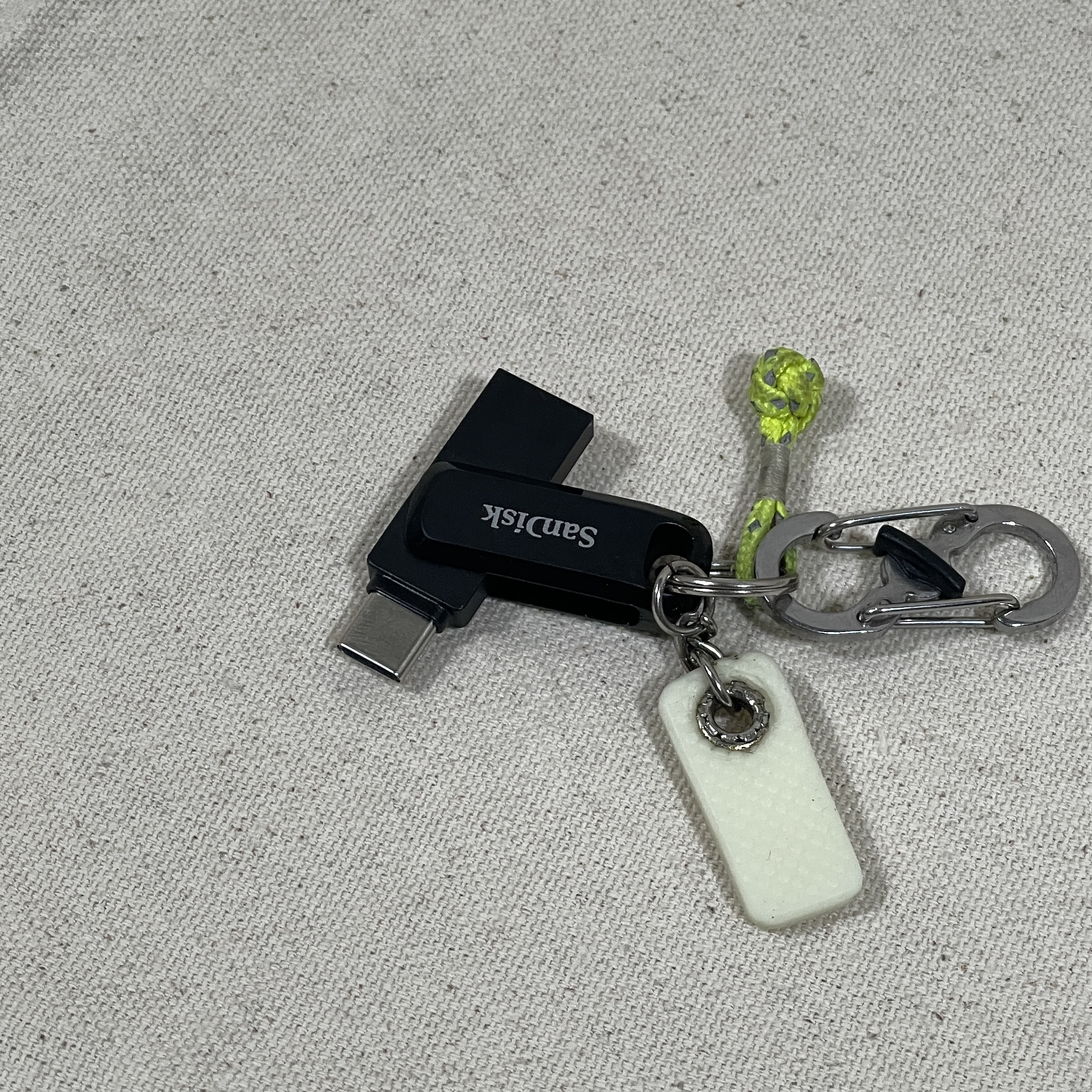

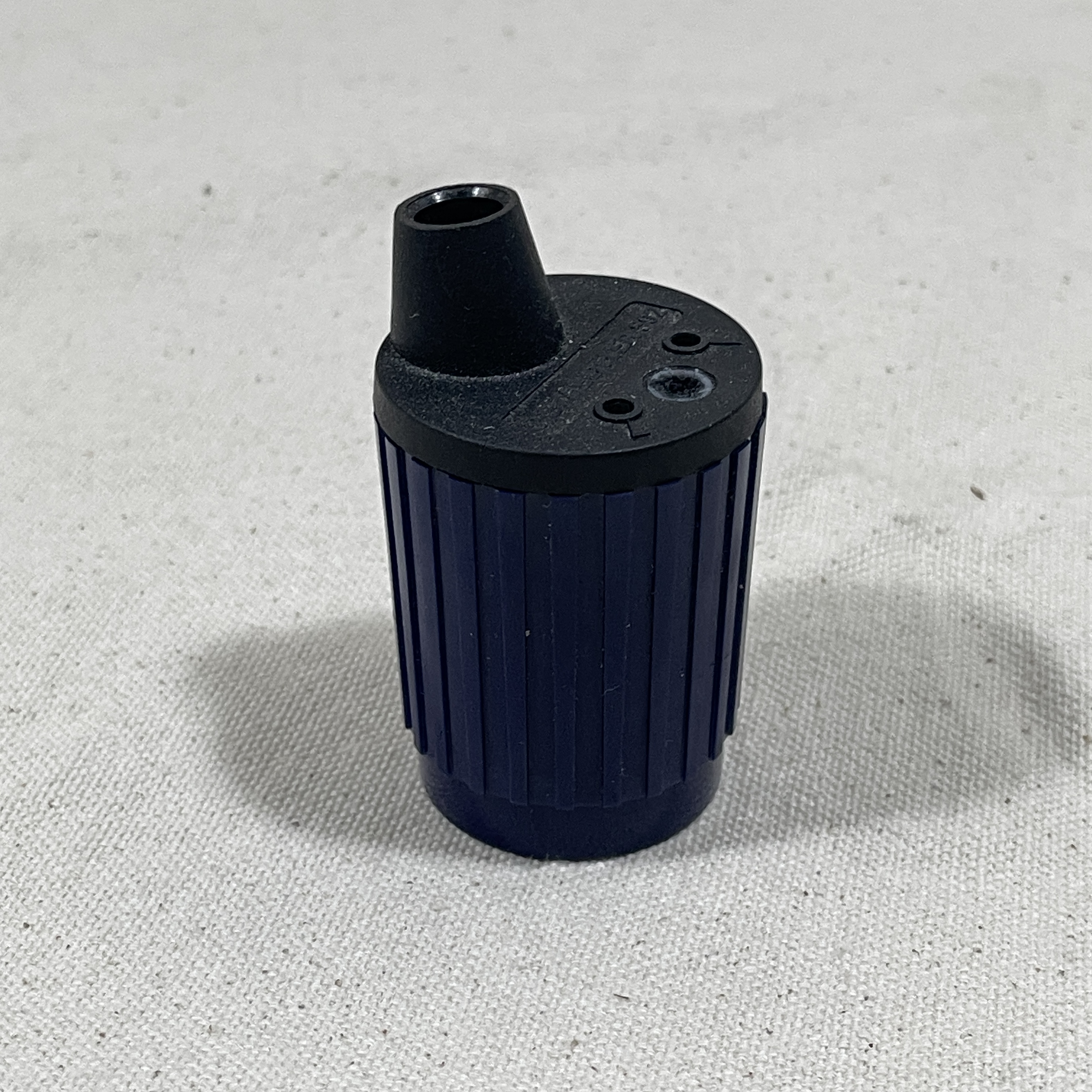

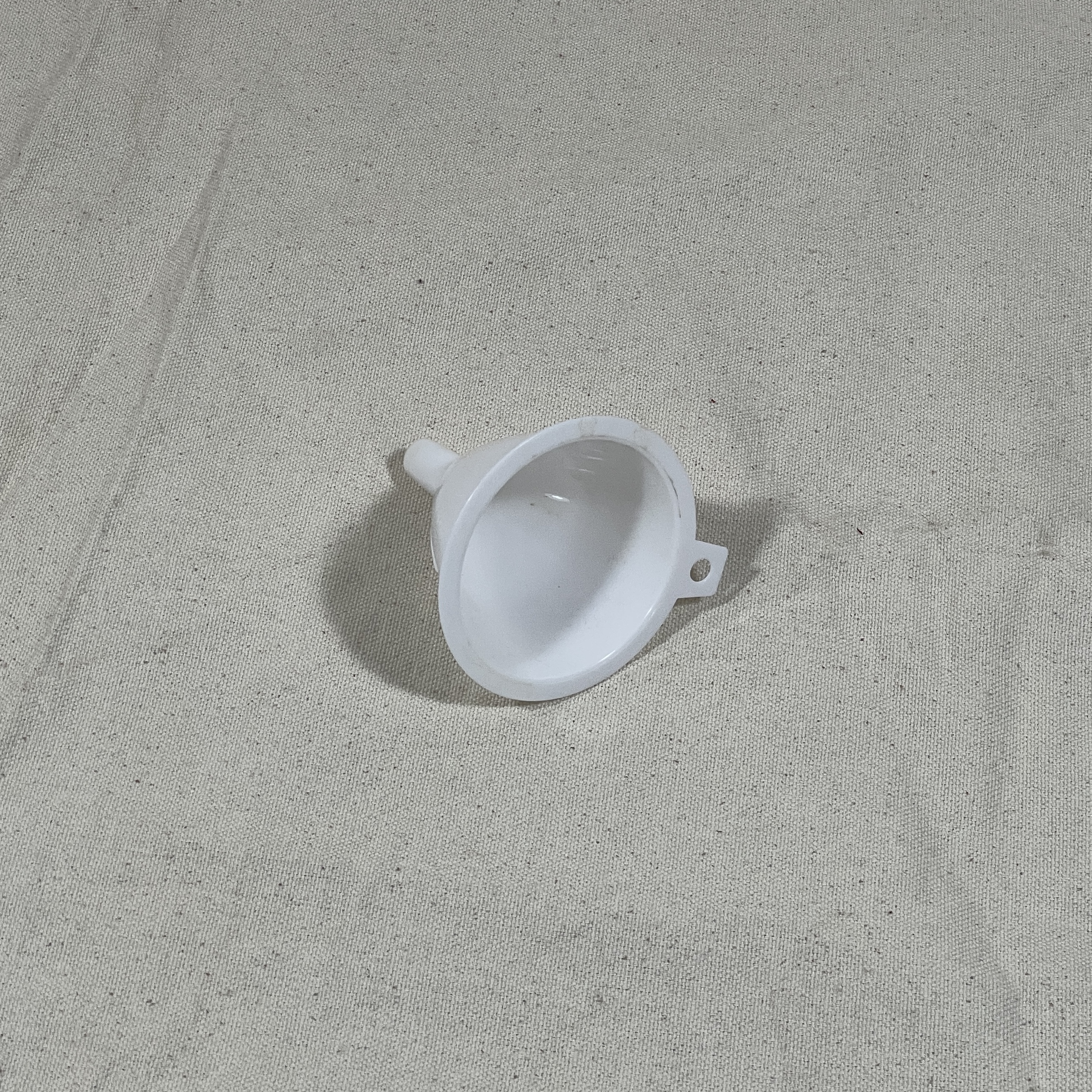

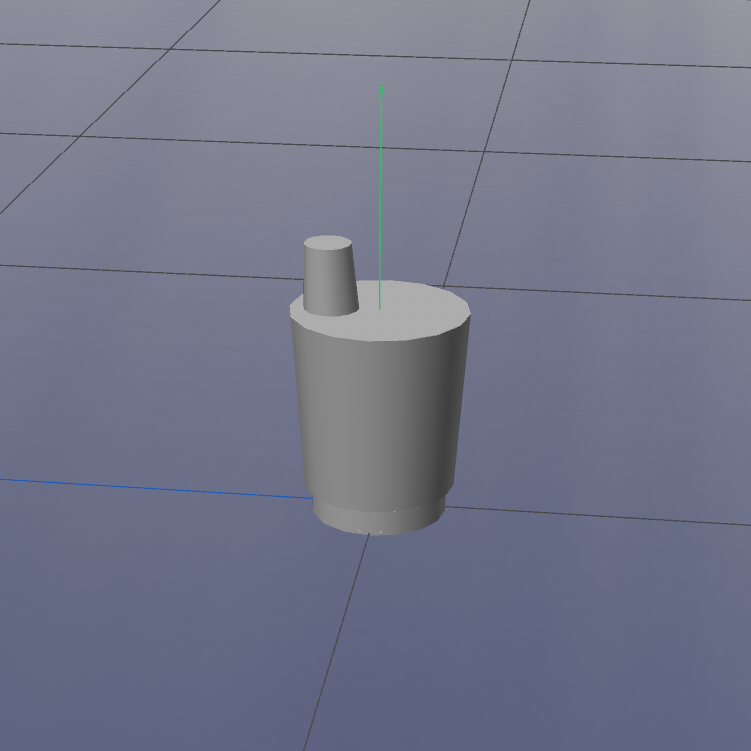

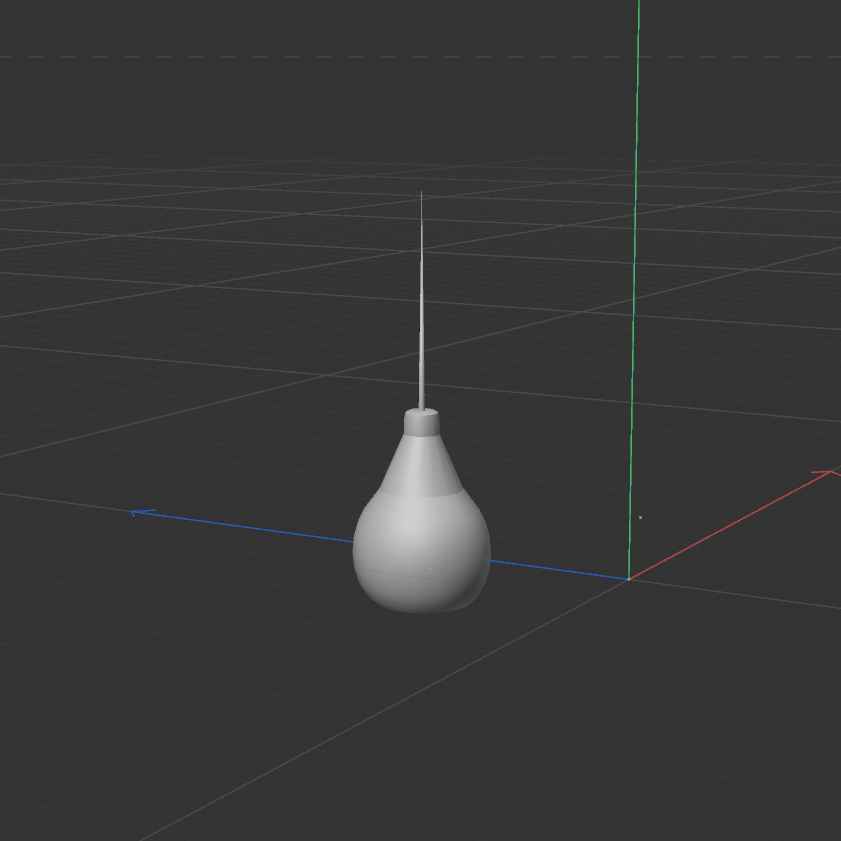

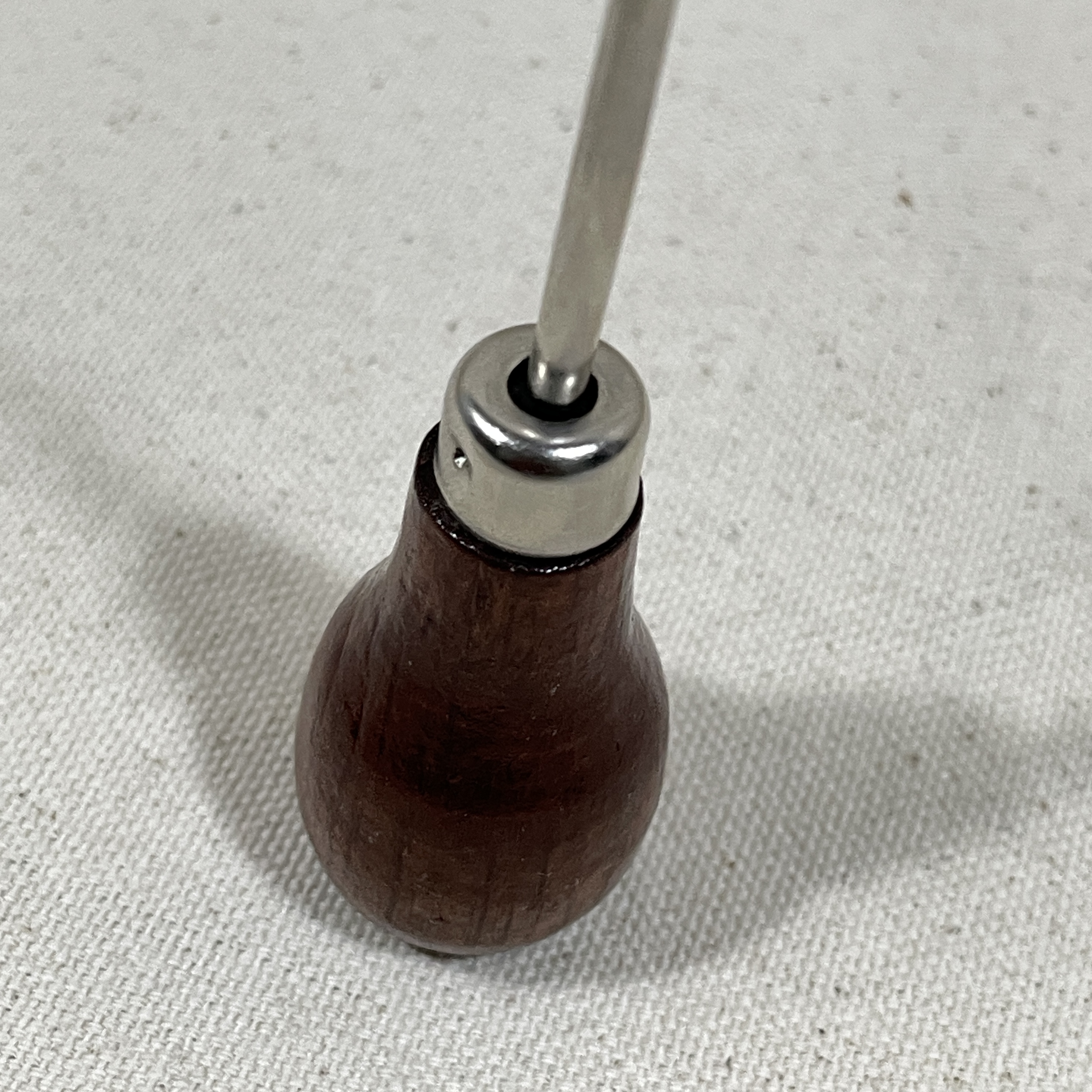

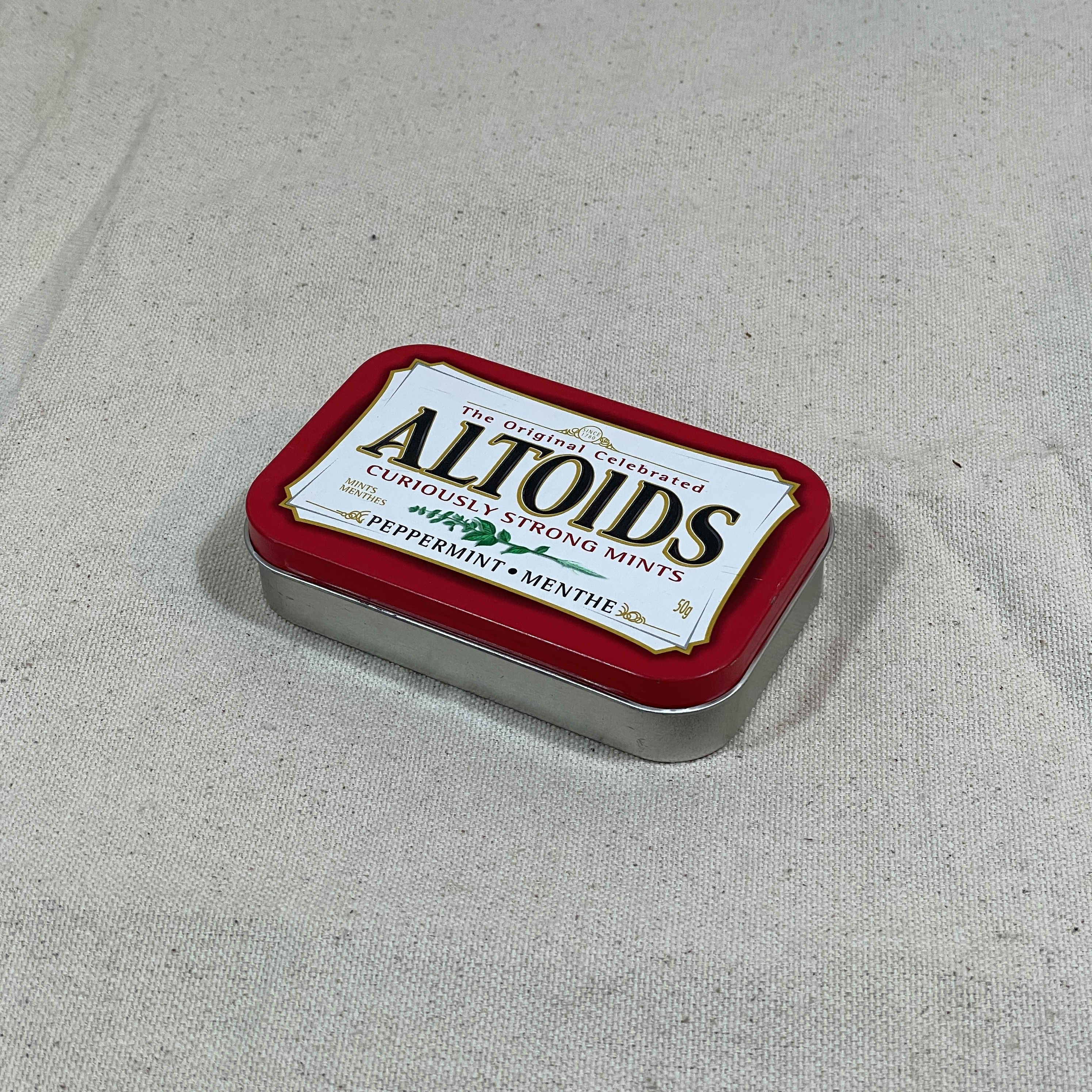

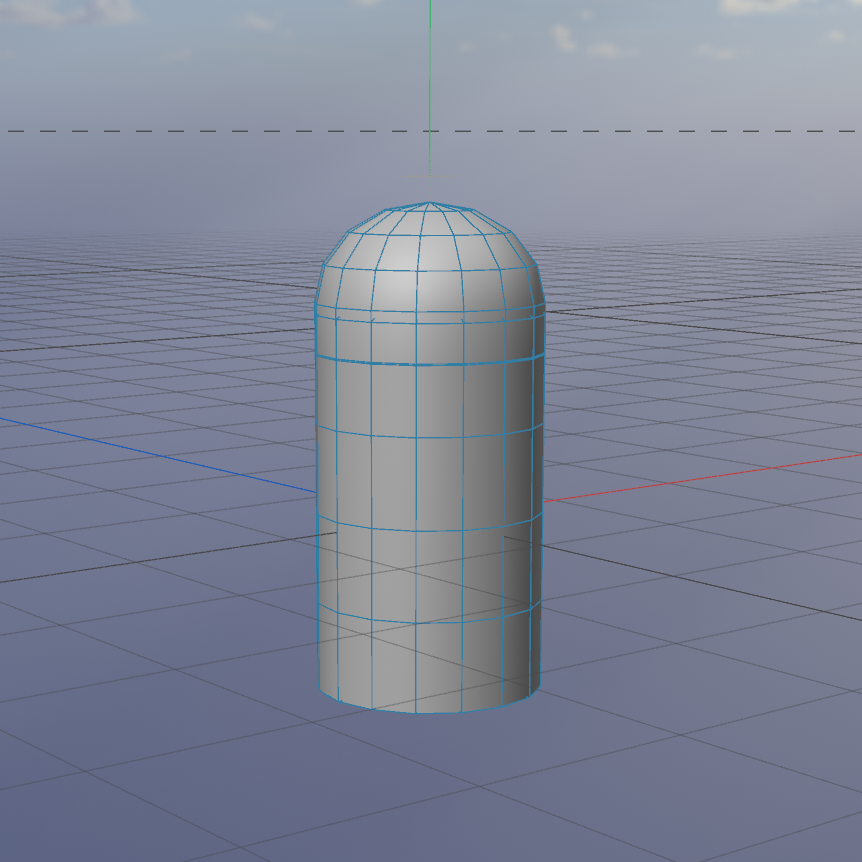

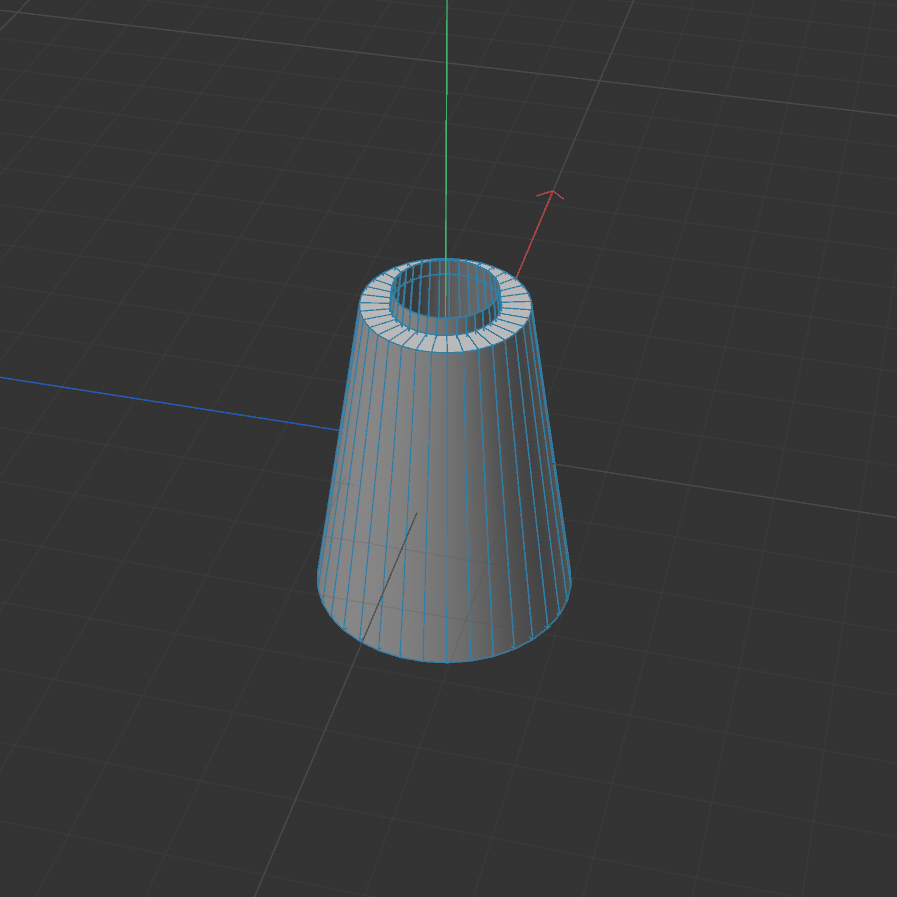

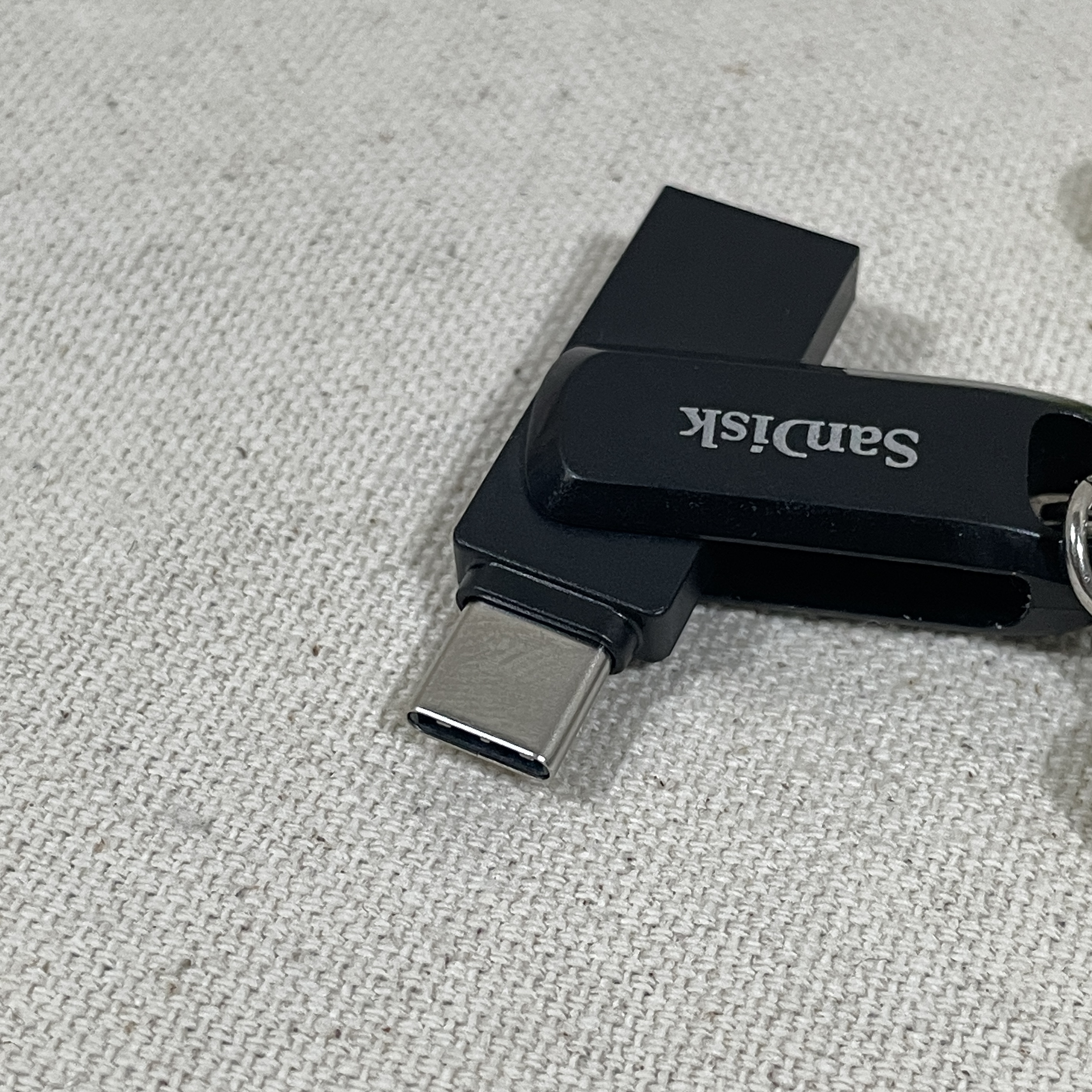

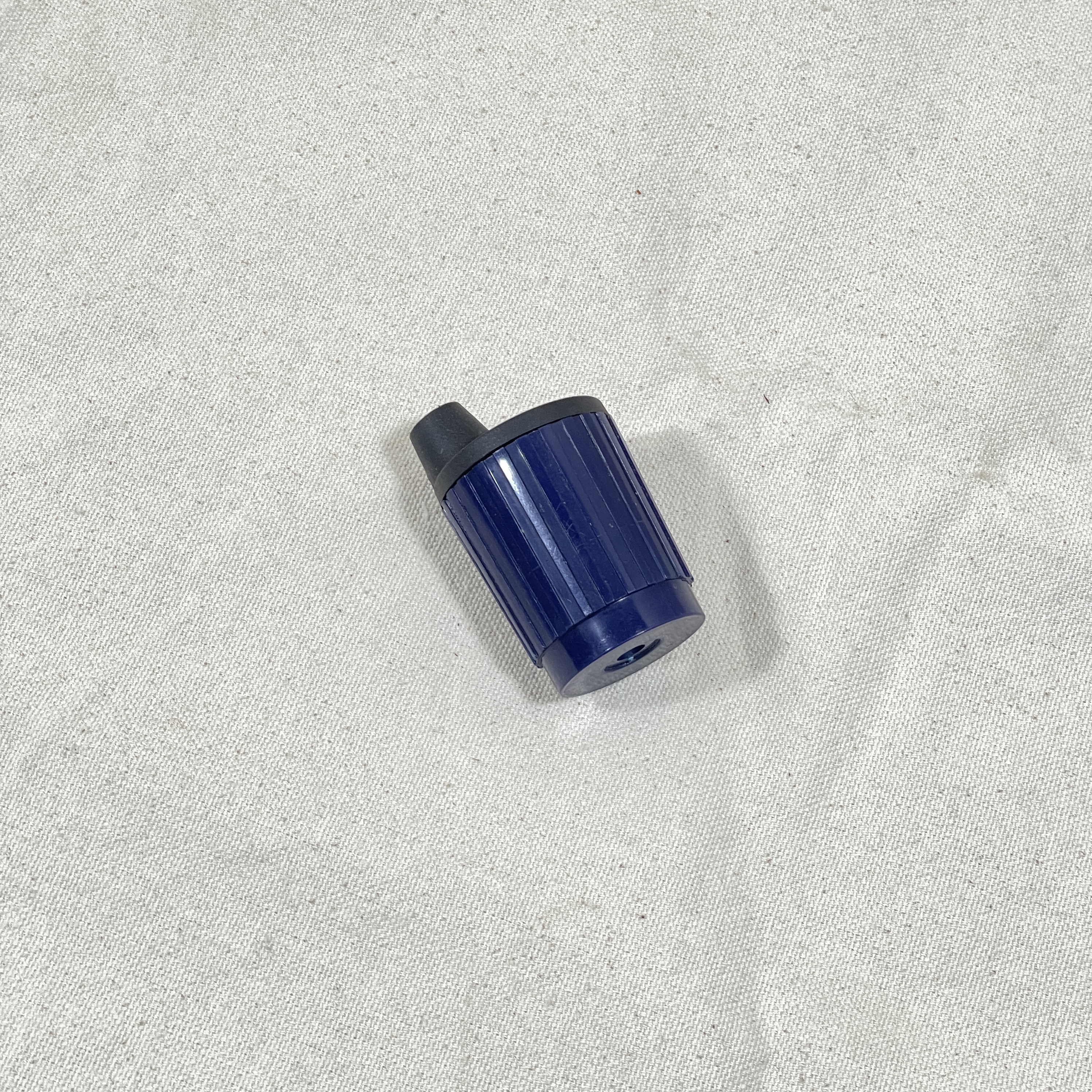

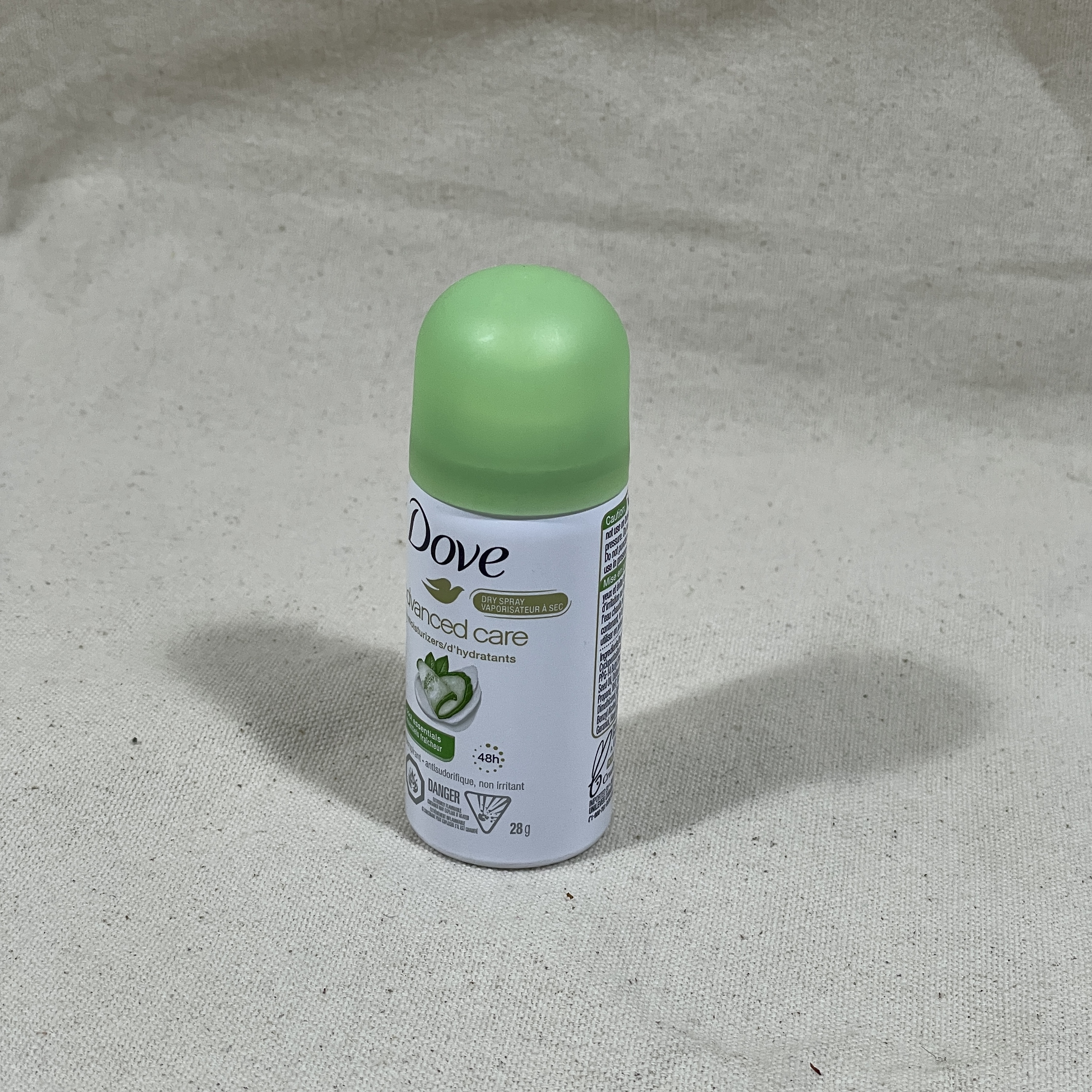

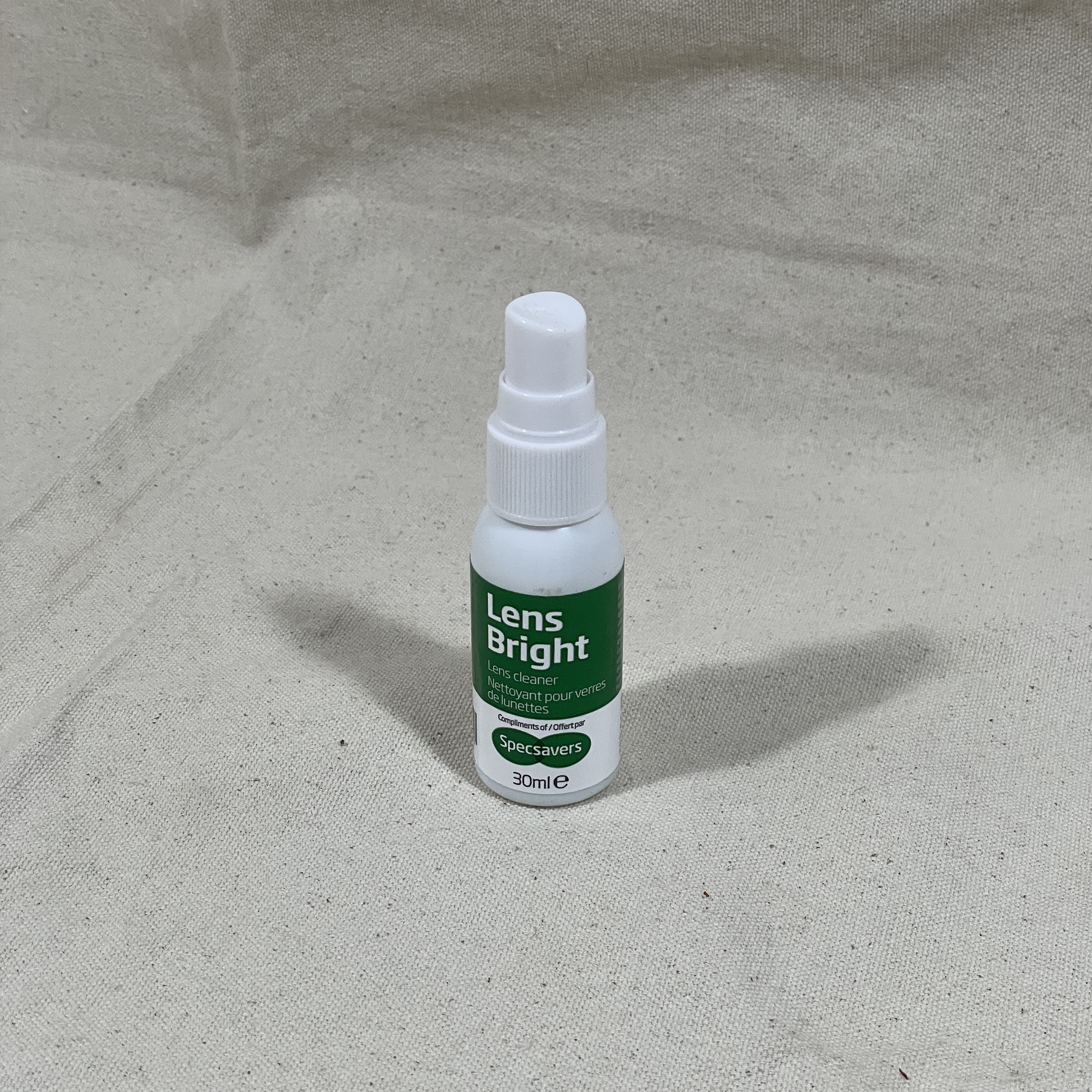

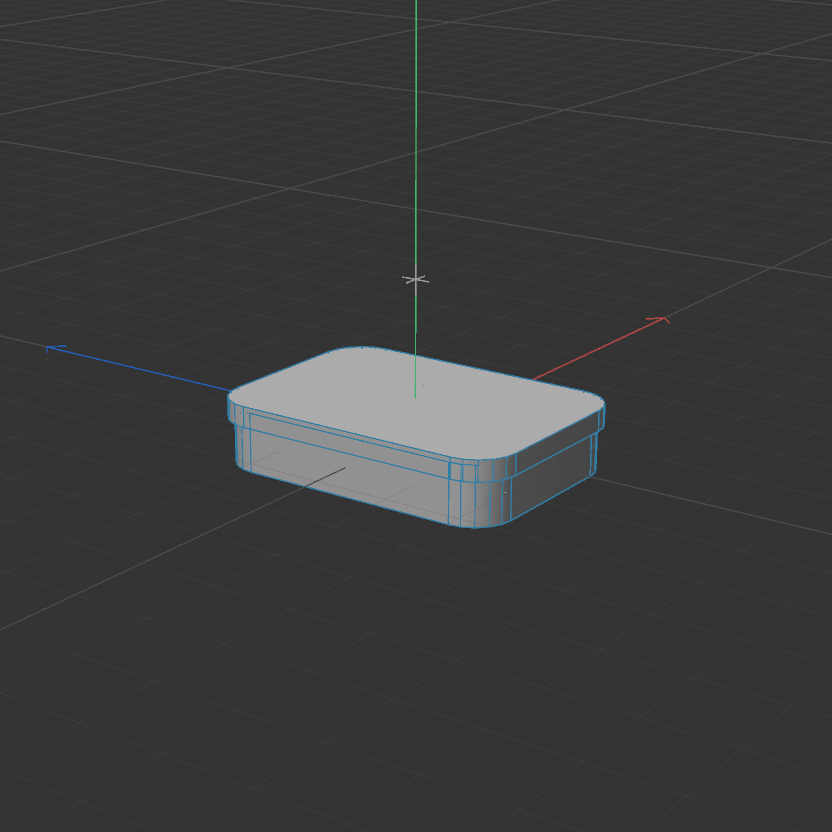

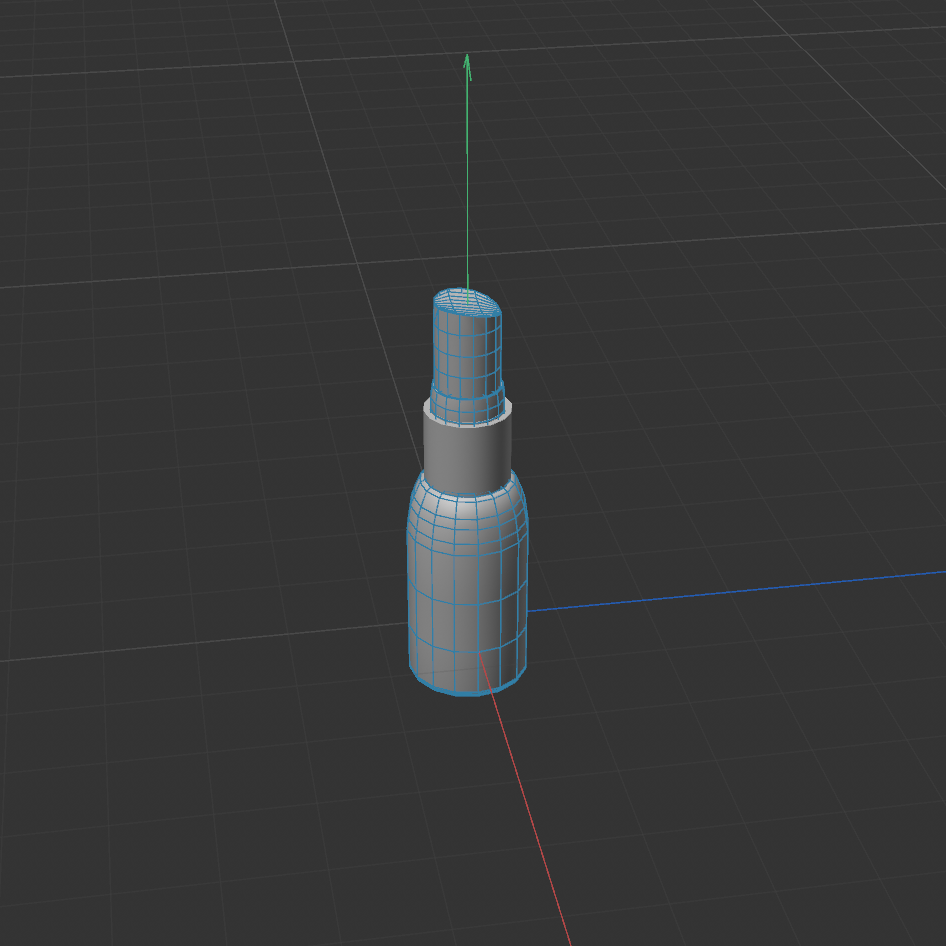

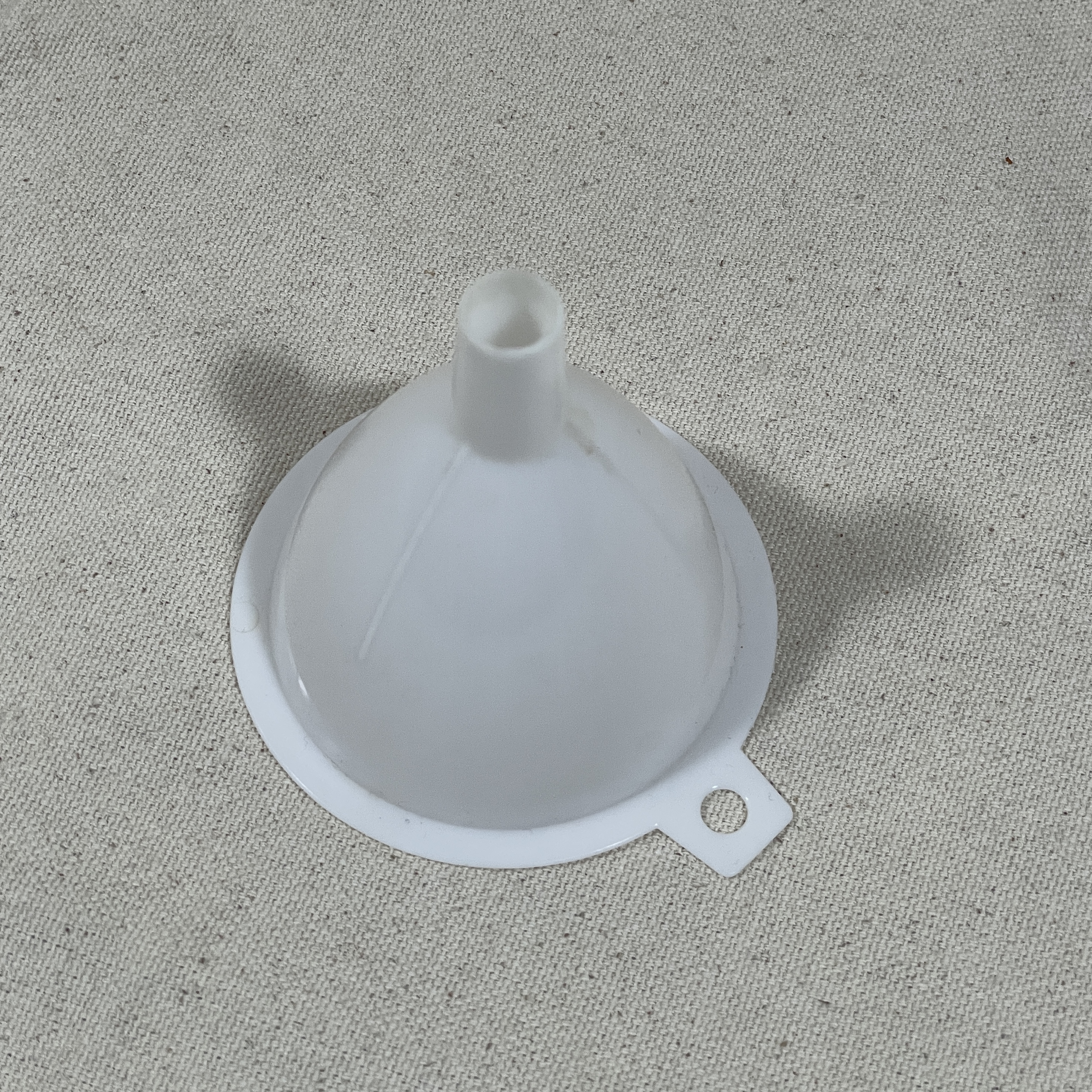

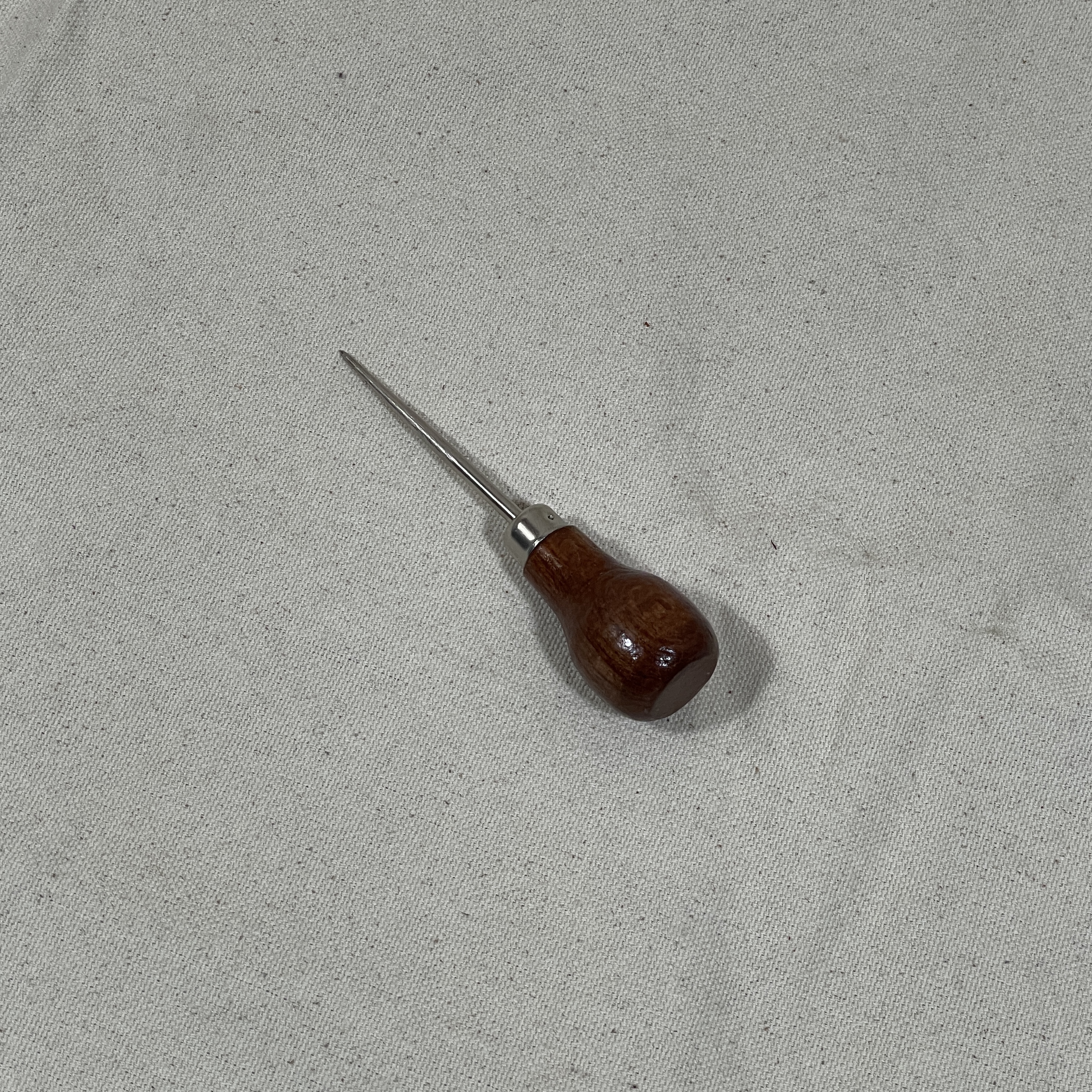

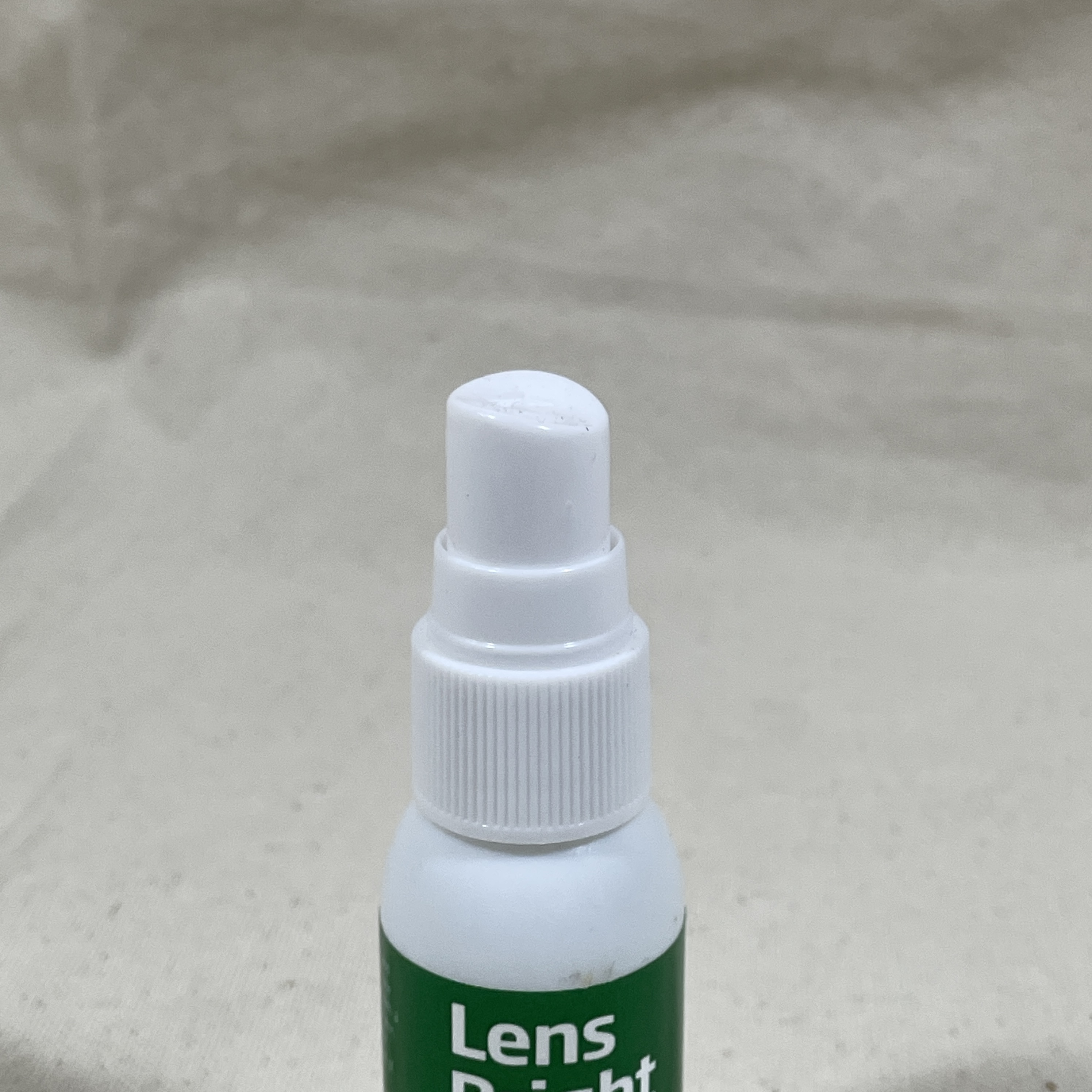

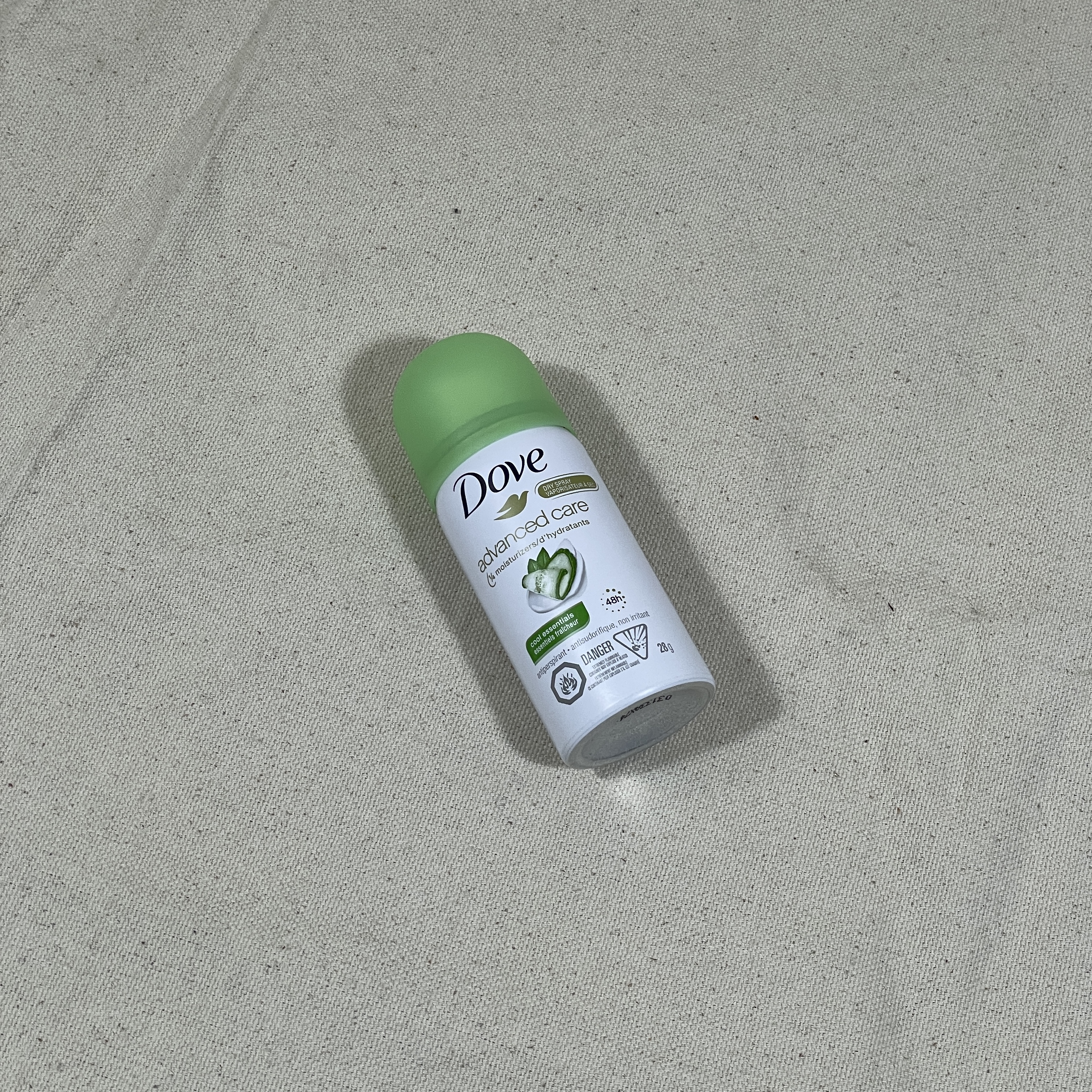

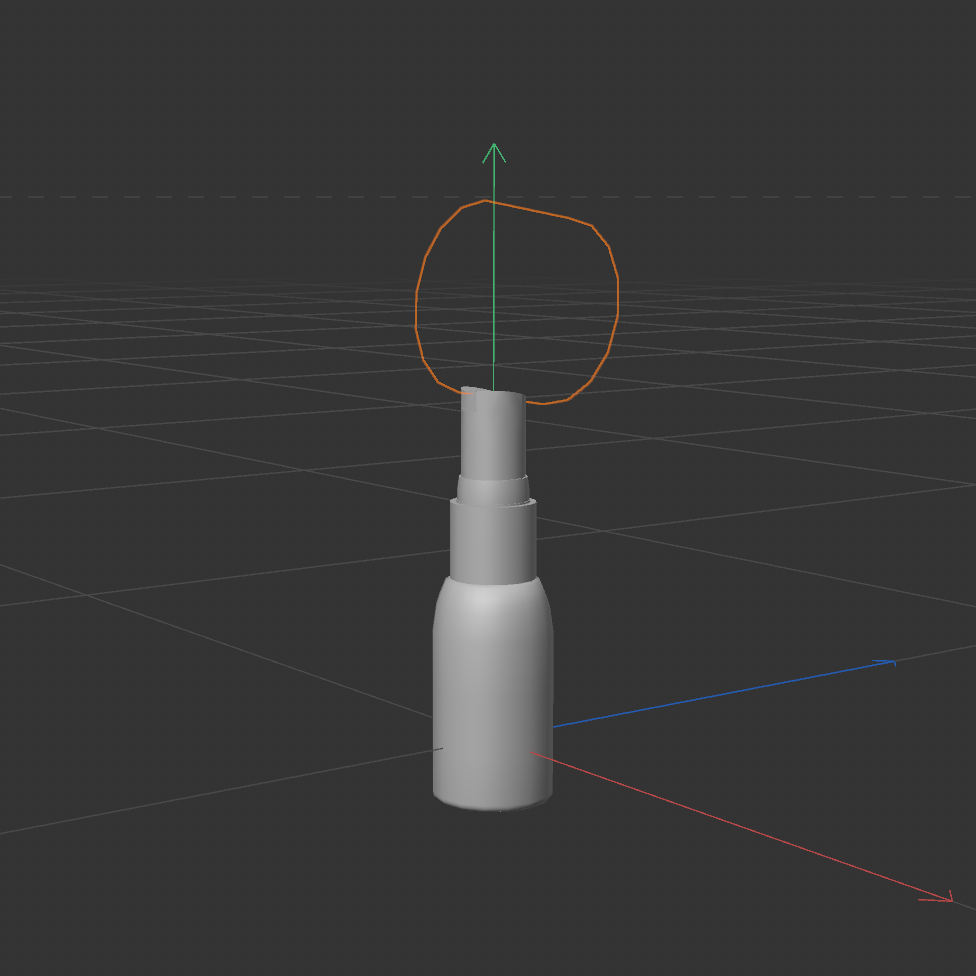

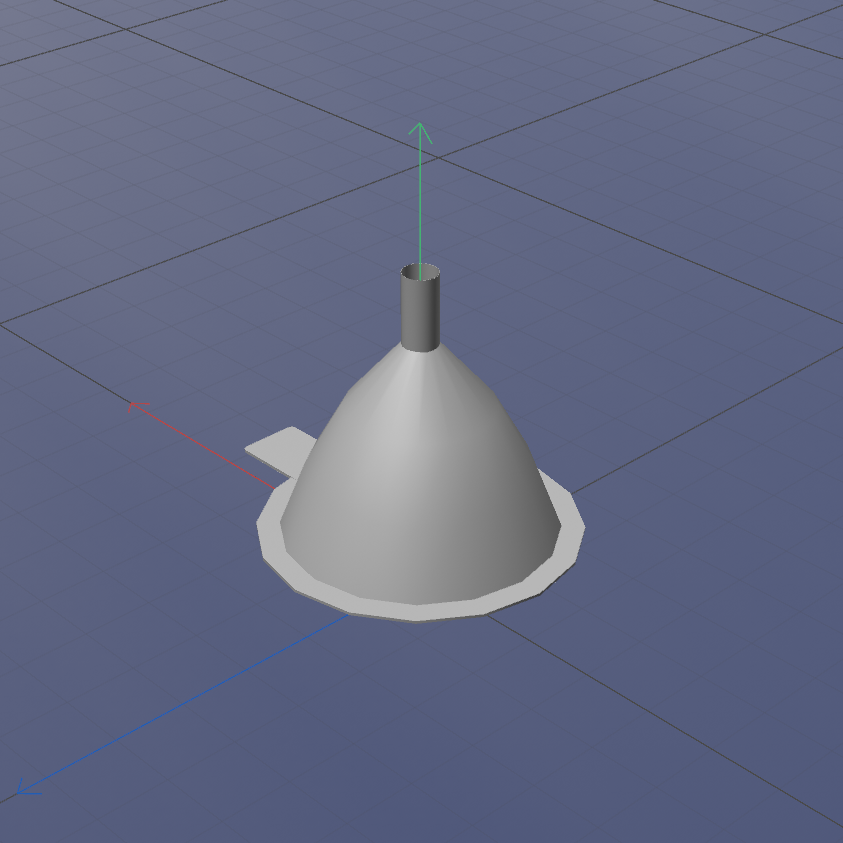

Lead sharpener Lead sharpener Lead sharpener model Thread spool Thread spool Thread spool model Mini deodorant spray Mini deodorant spray Mini deodorant spray model Spray bottle Spray bottle Spray bottle model (boolean) Spray bottle model Leather awl (detail) Leather awl Leather awl model Funnel (detail) Funnel Funnel model USB stick (detail) USB stick USB stick model Altoids tin Altoids tin Altoids tin model

Activity 2

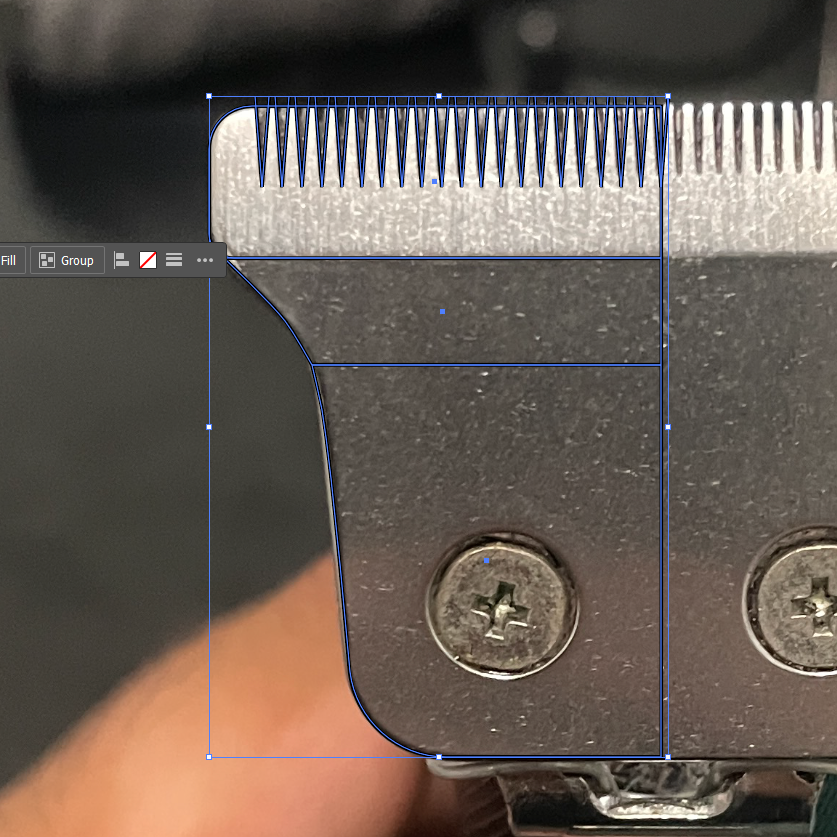

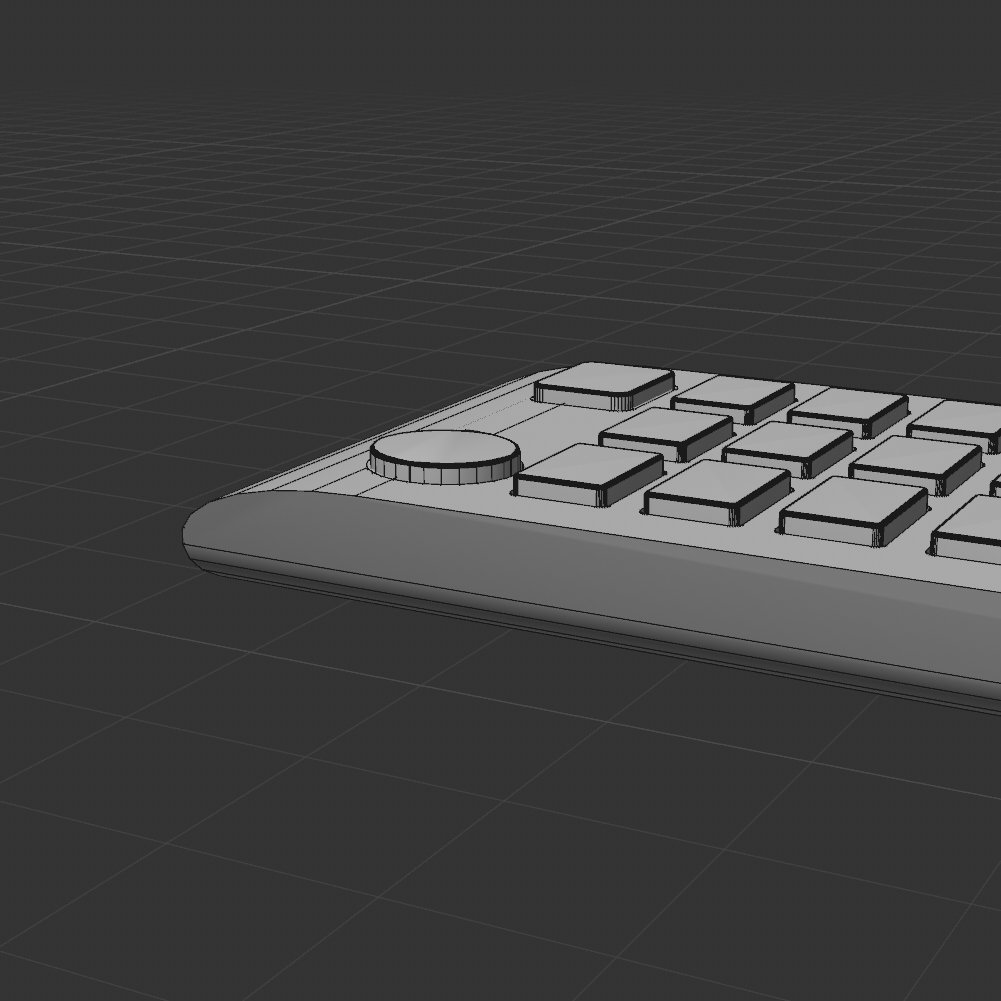

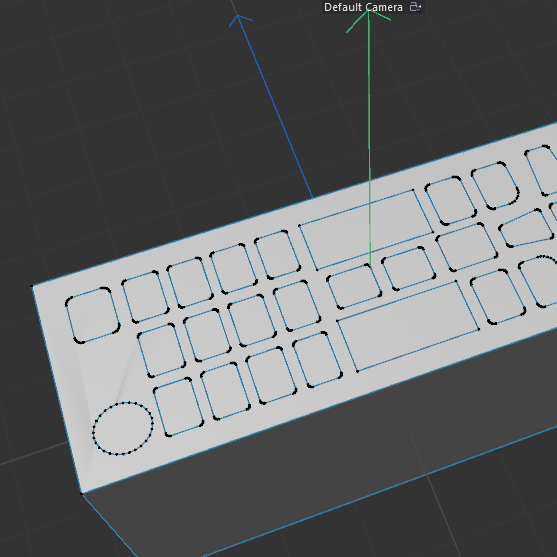

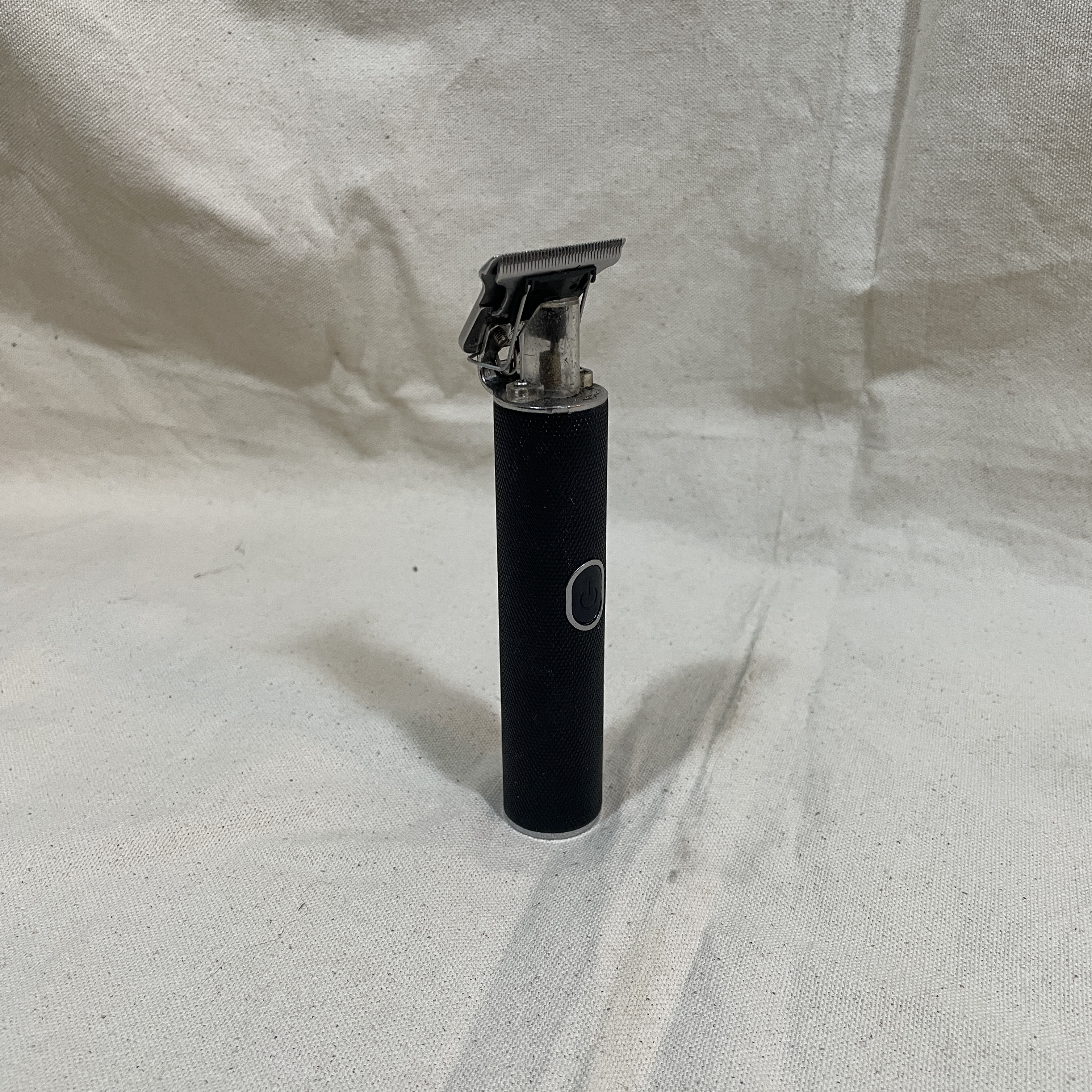

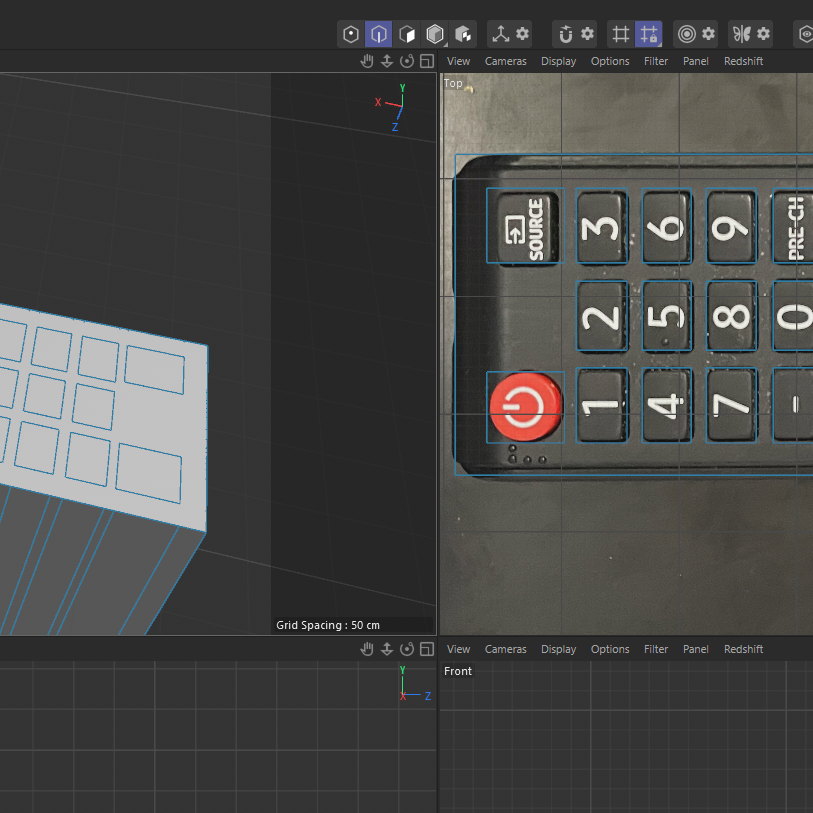

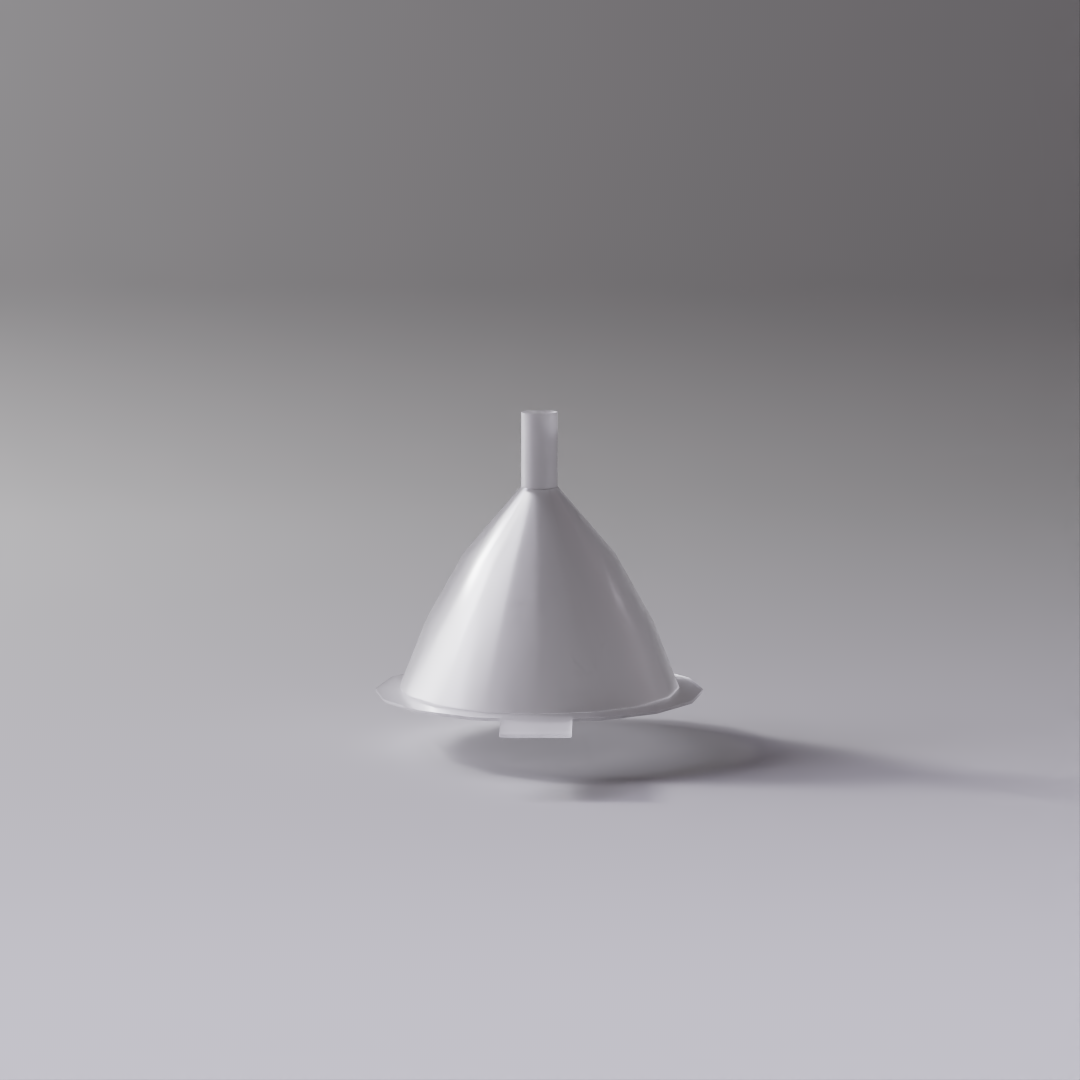

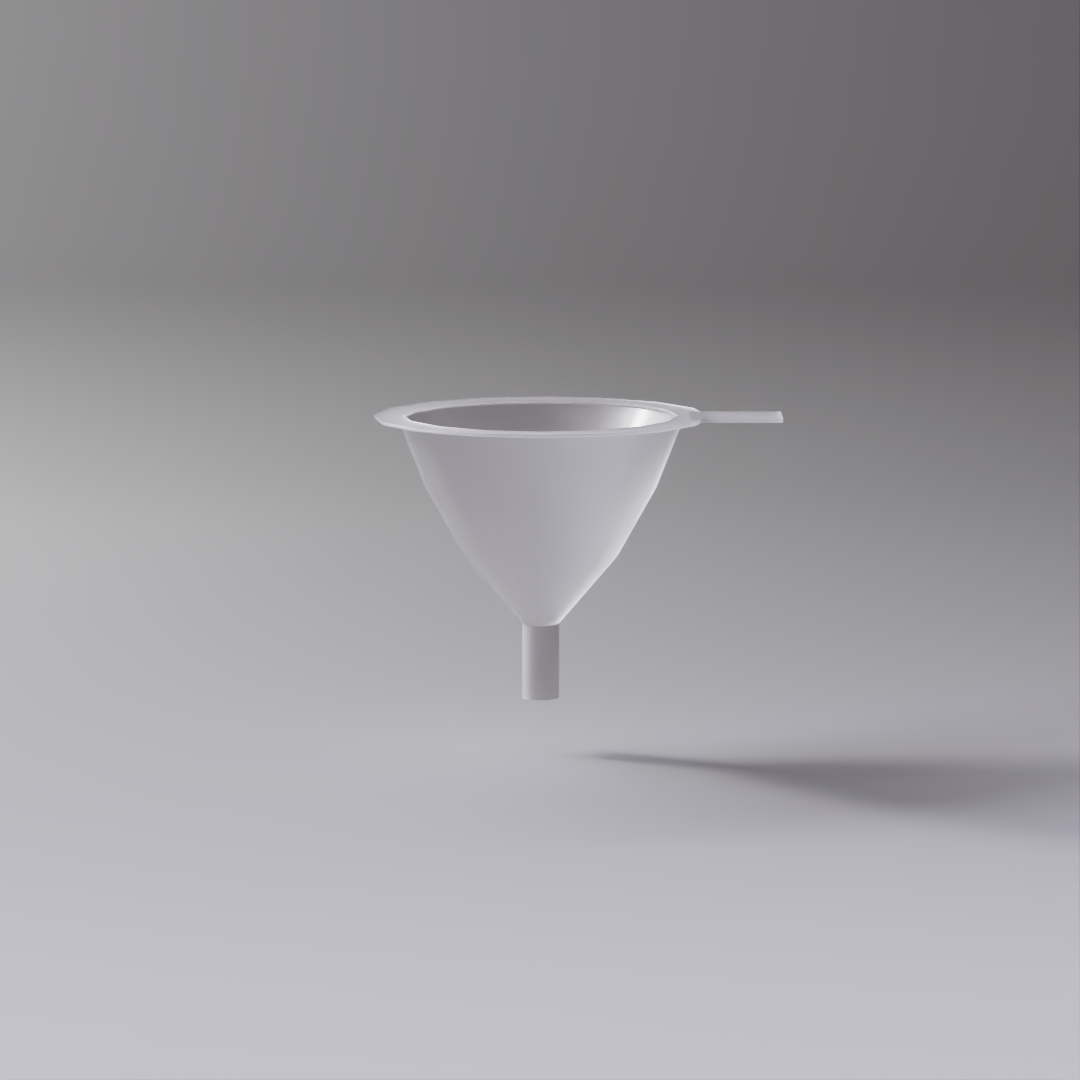

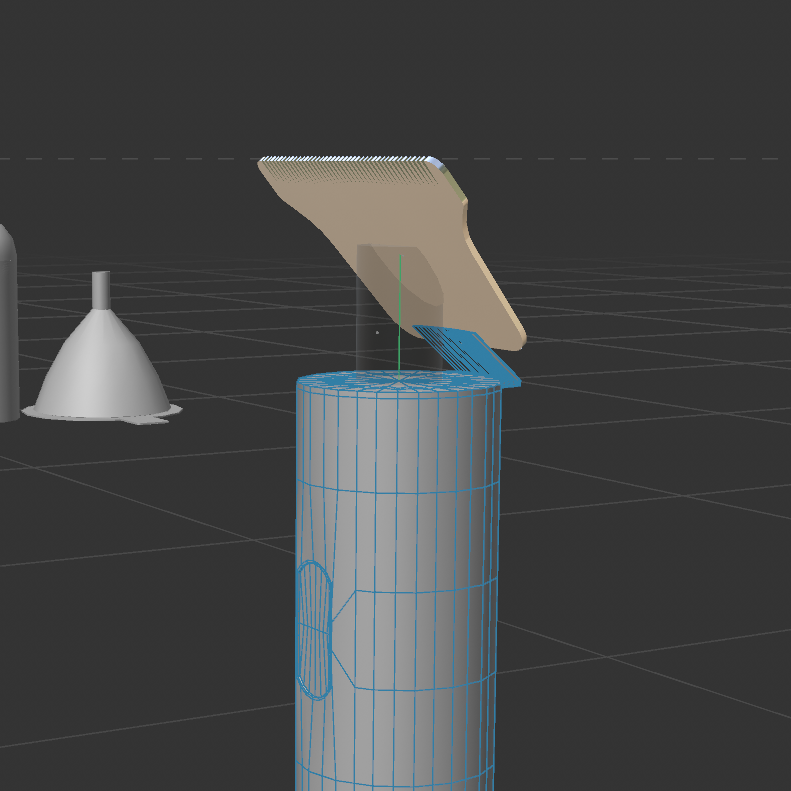

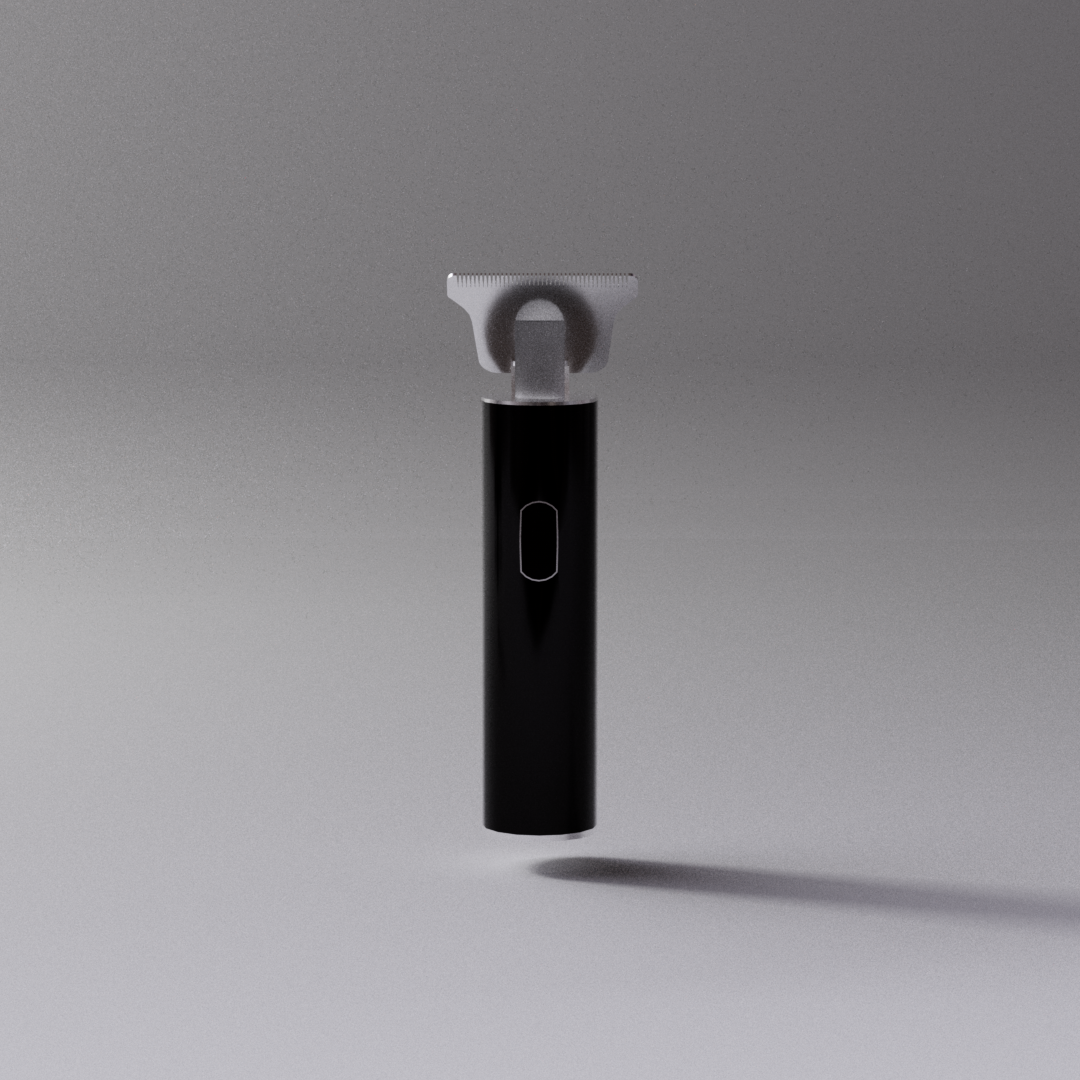

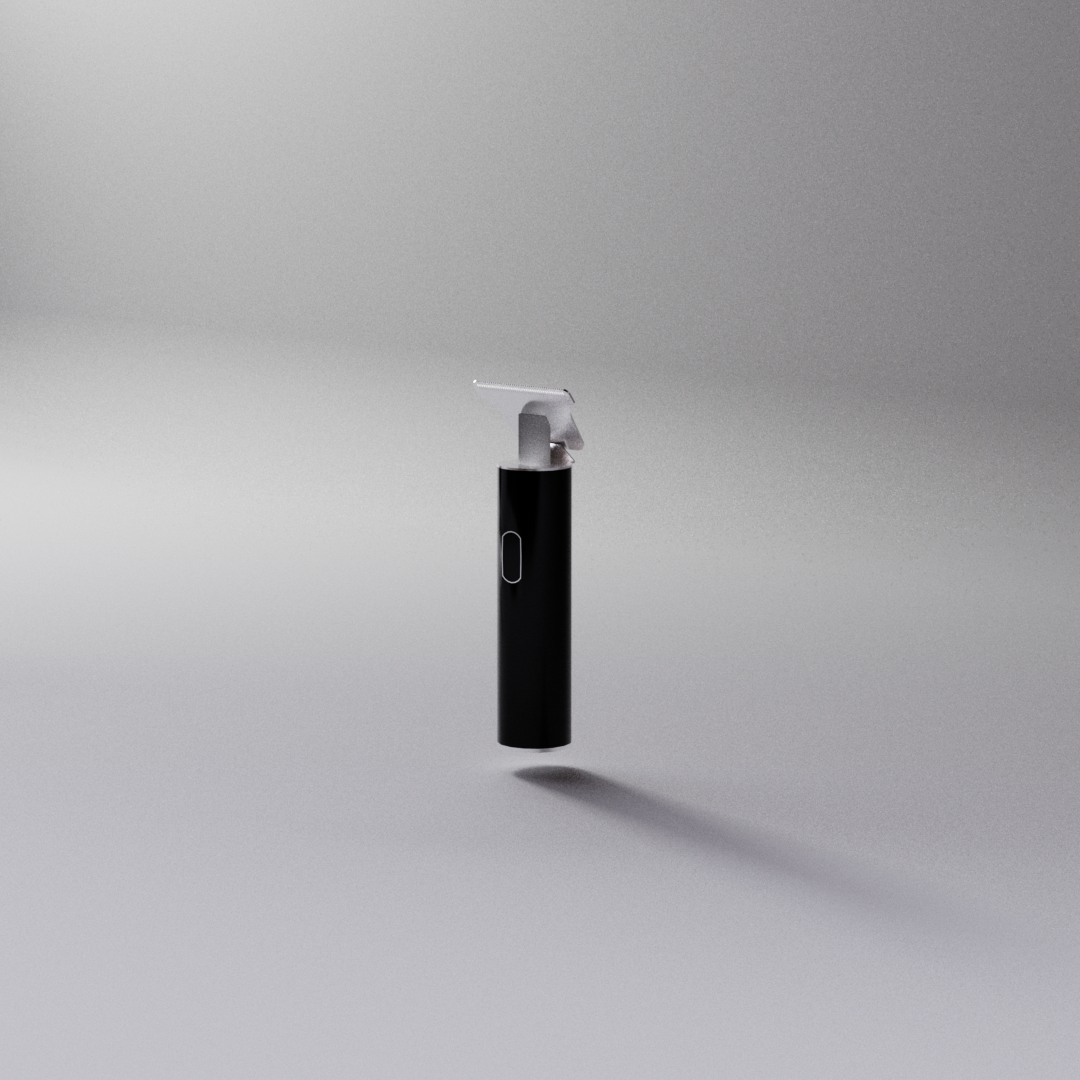

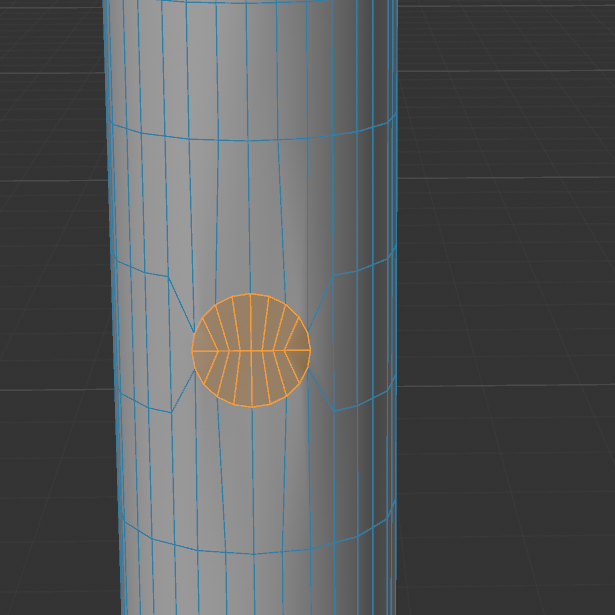

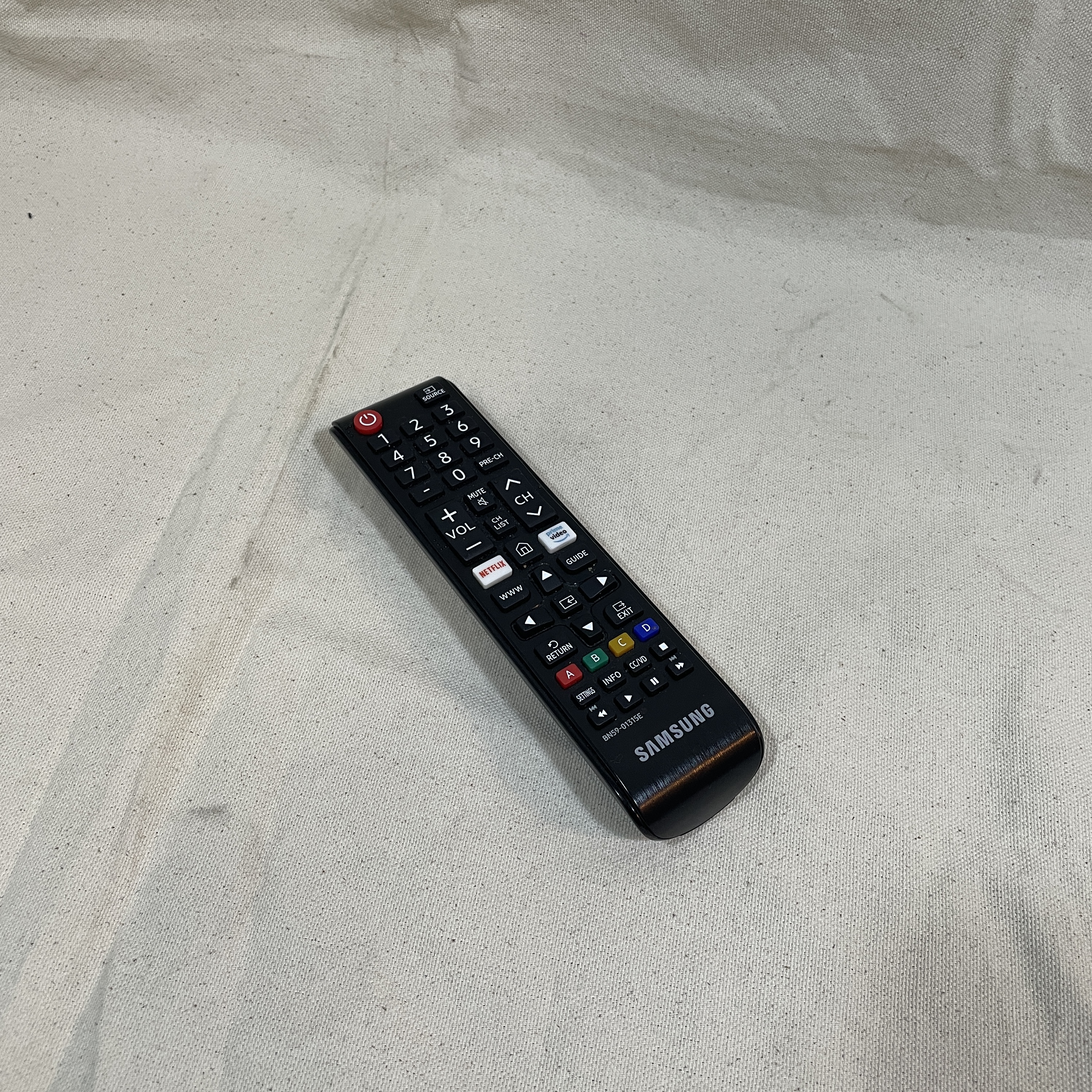

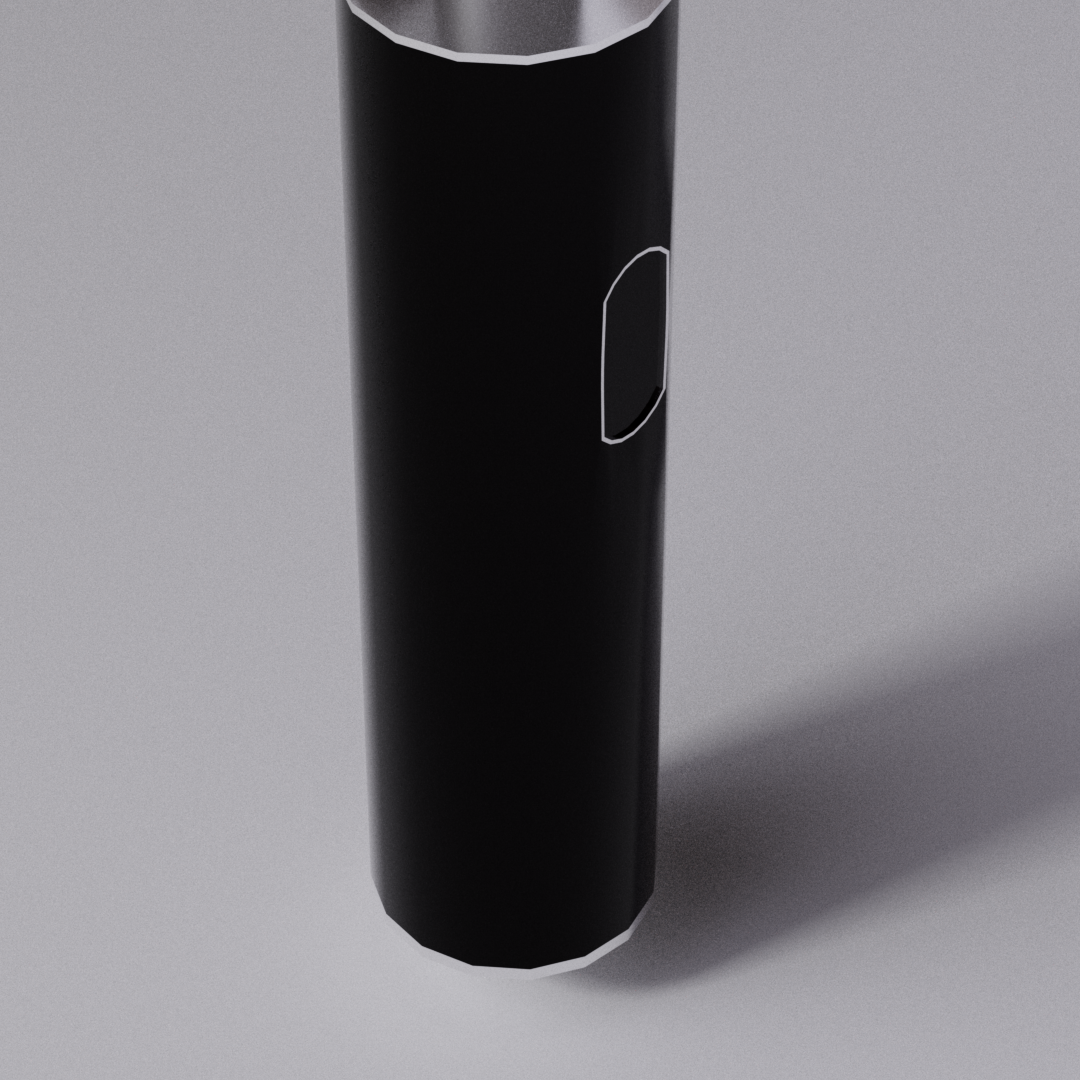

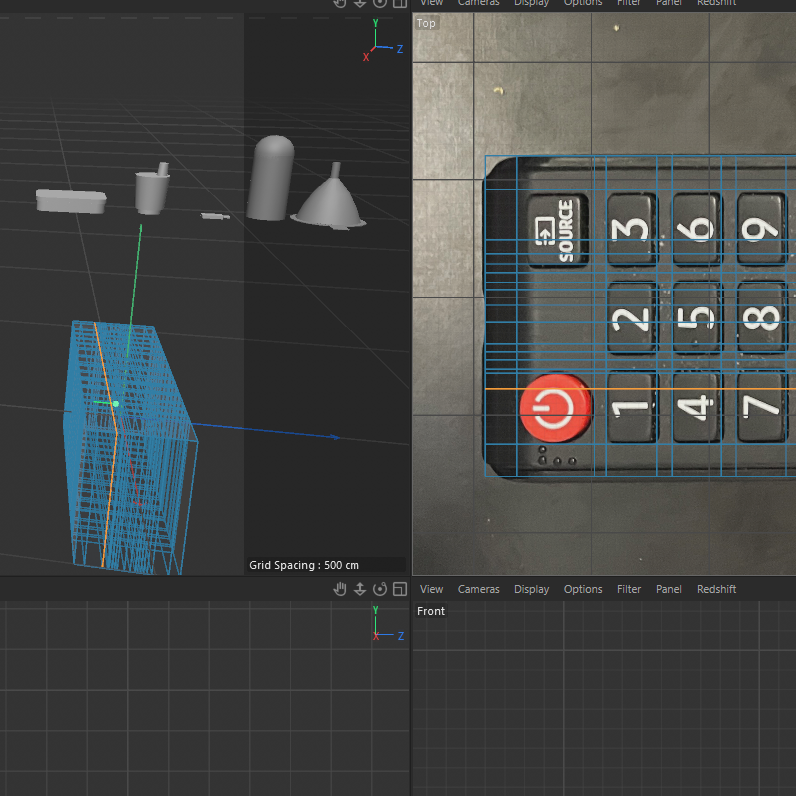

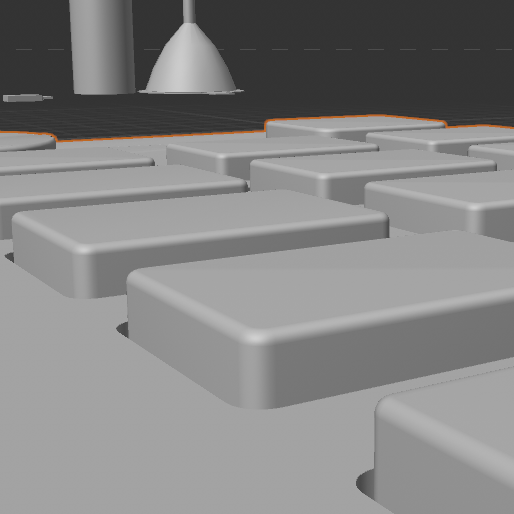

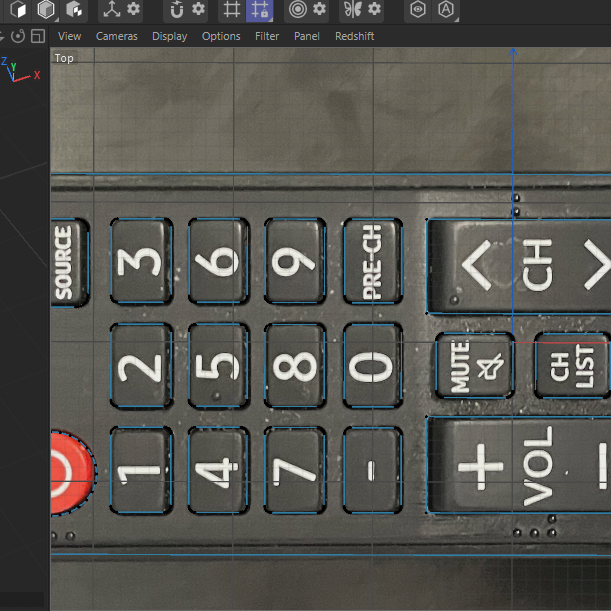

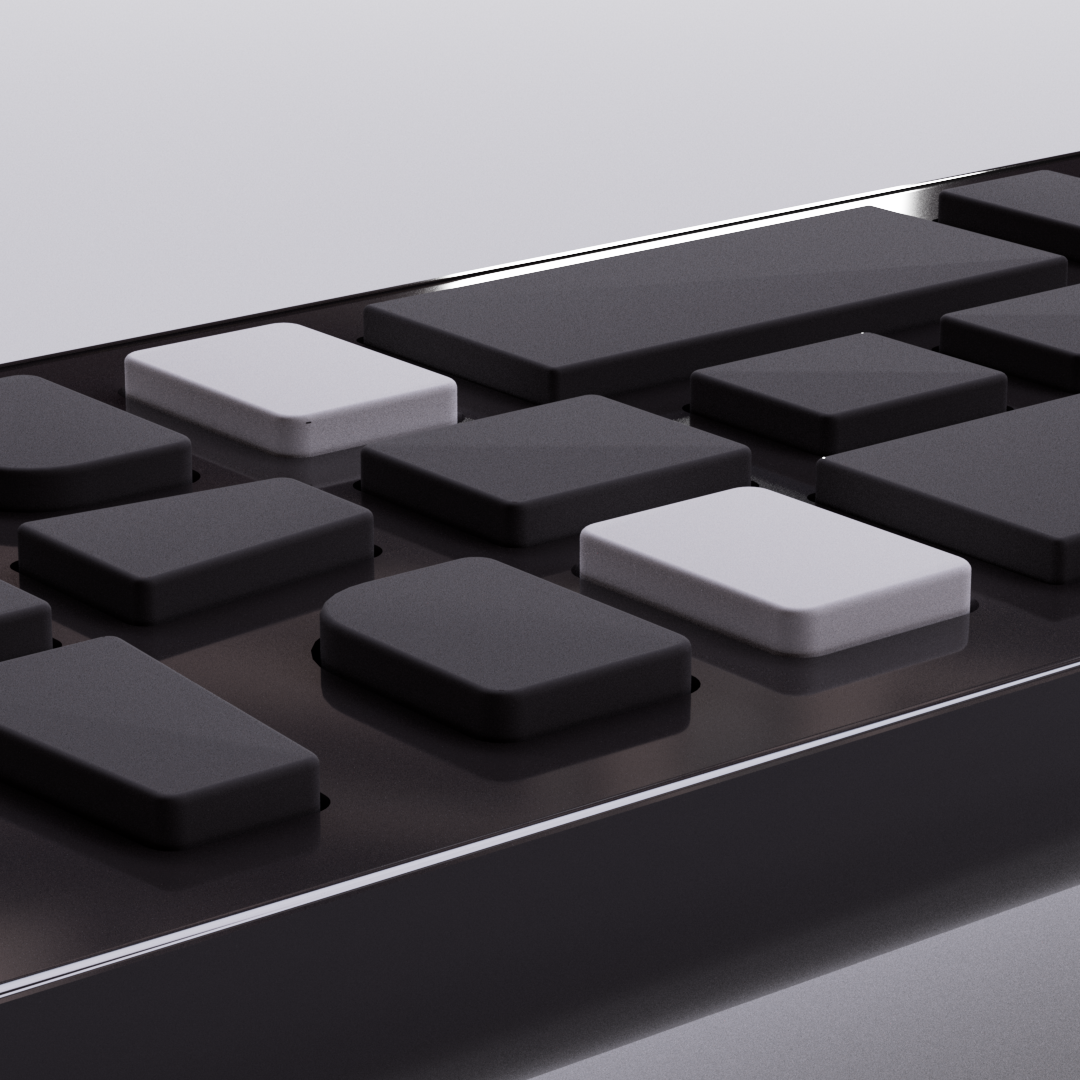

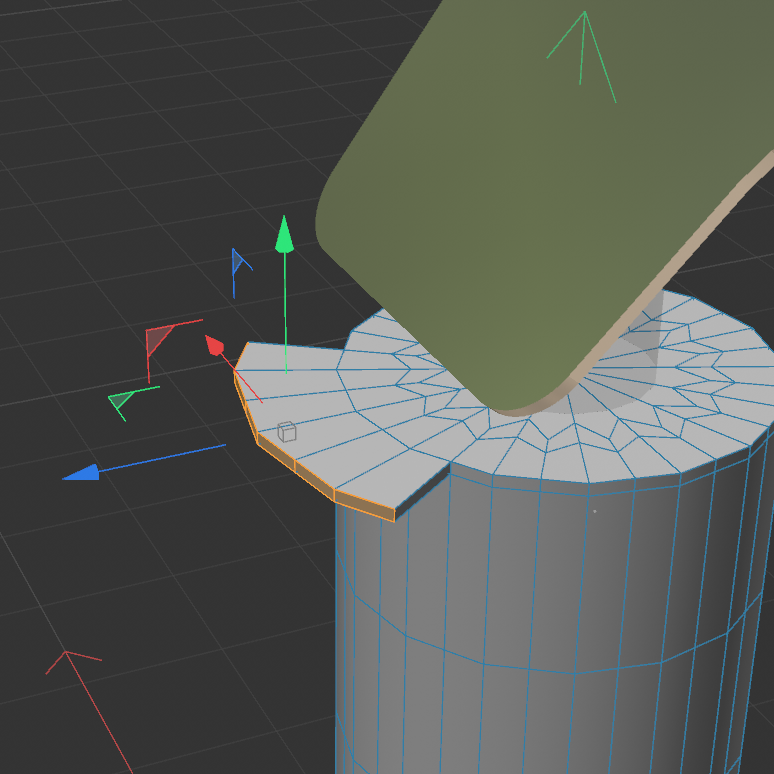

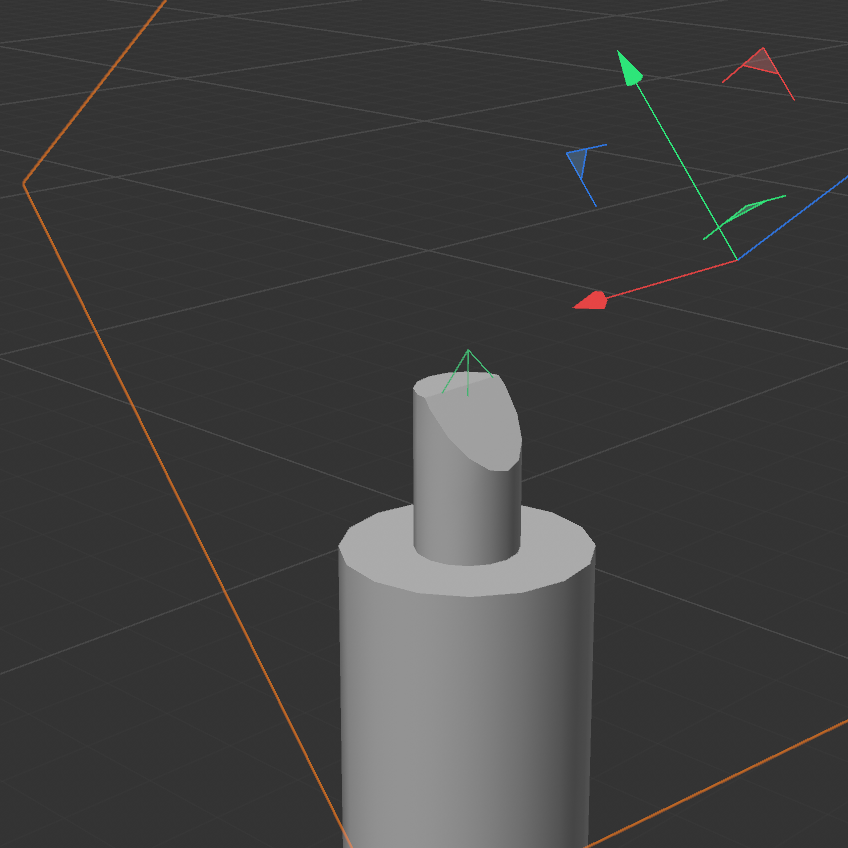

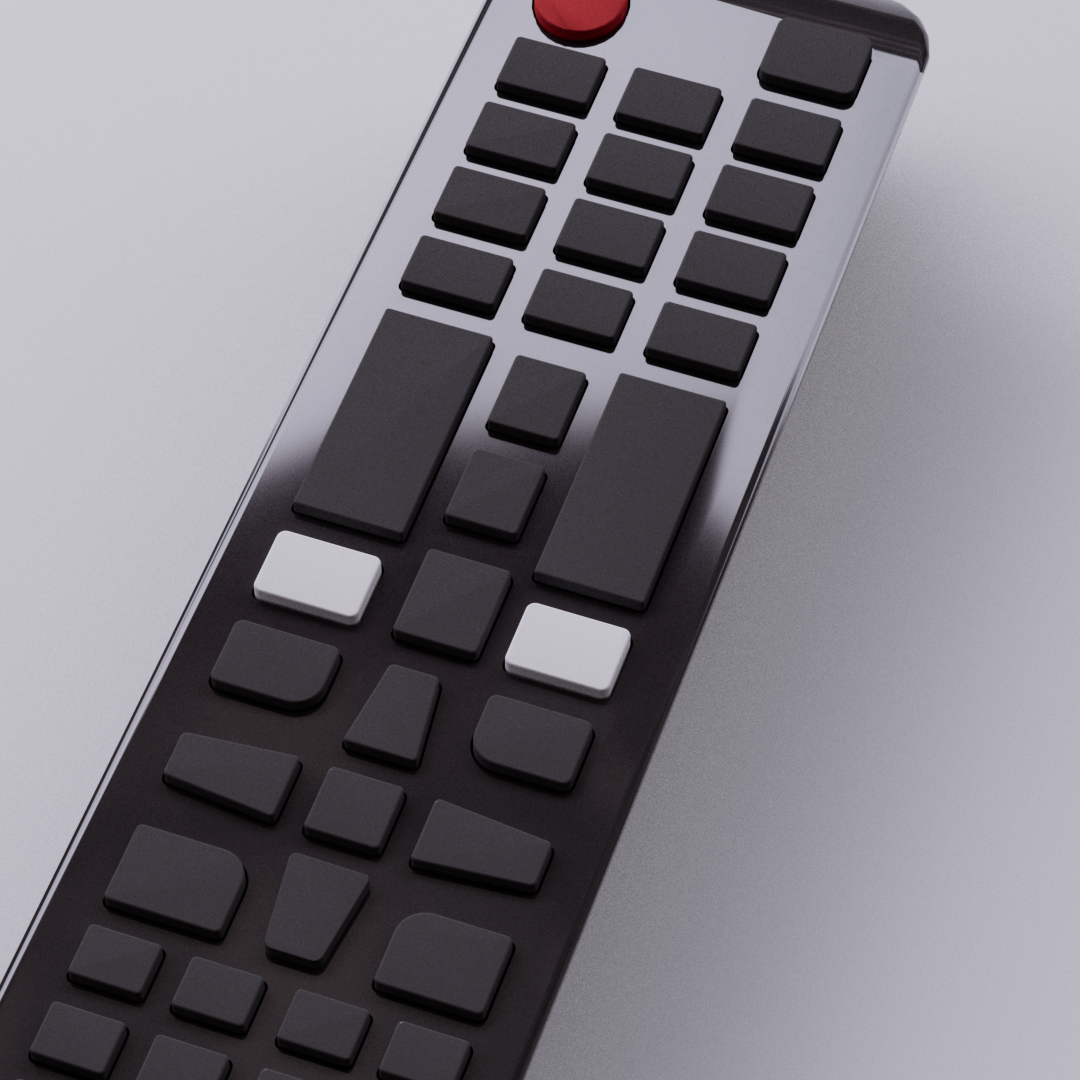

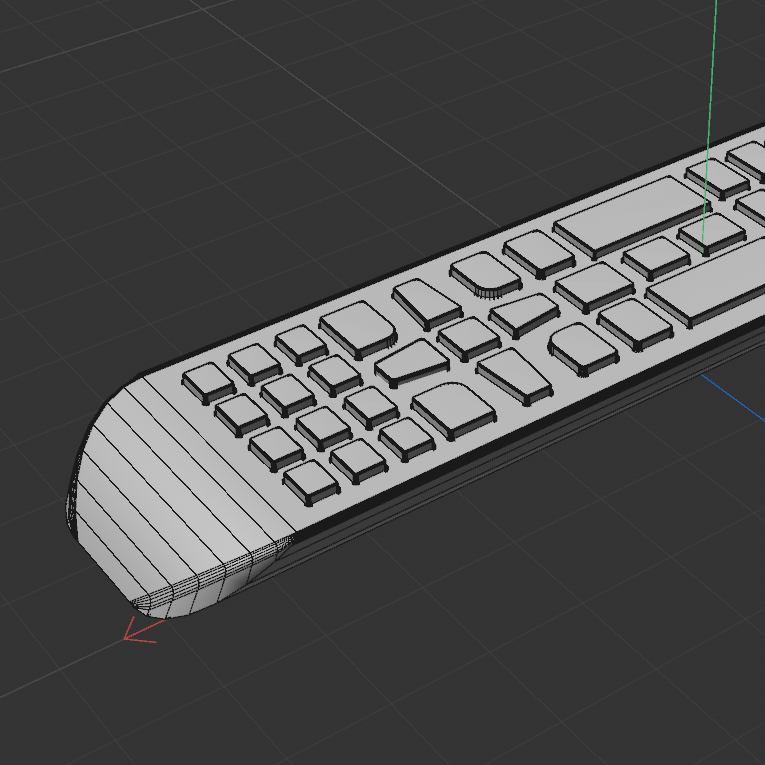

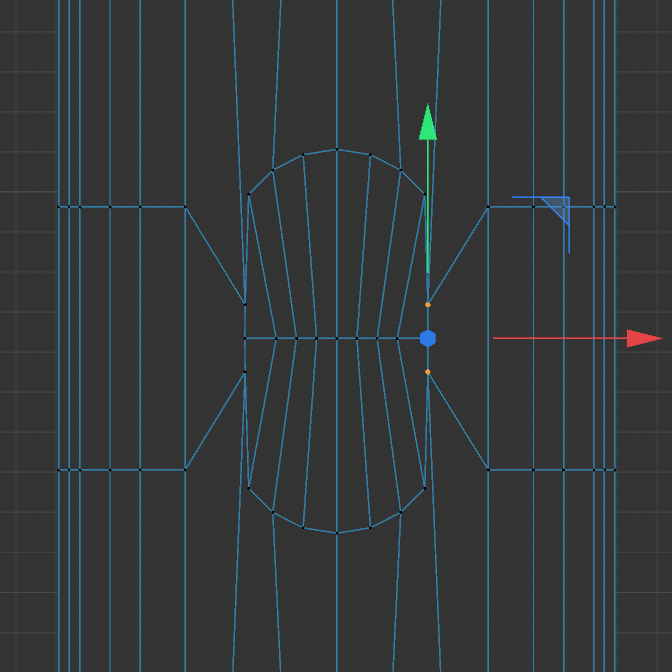

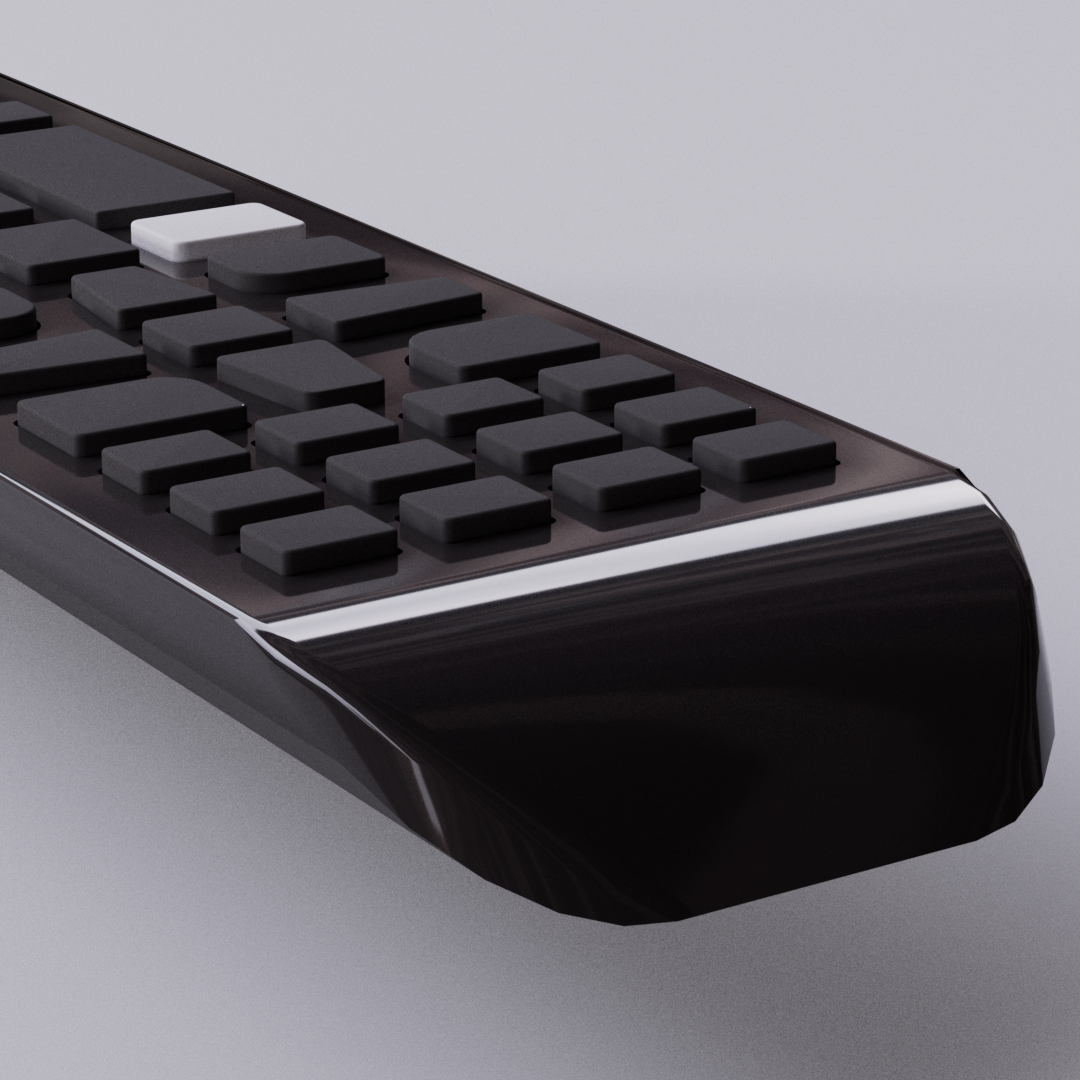

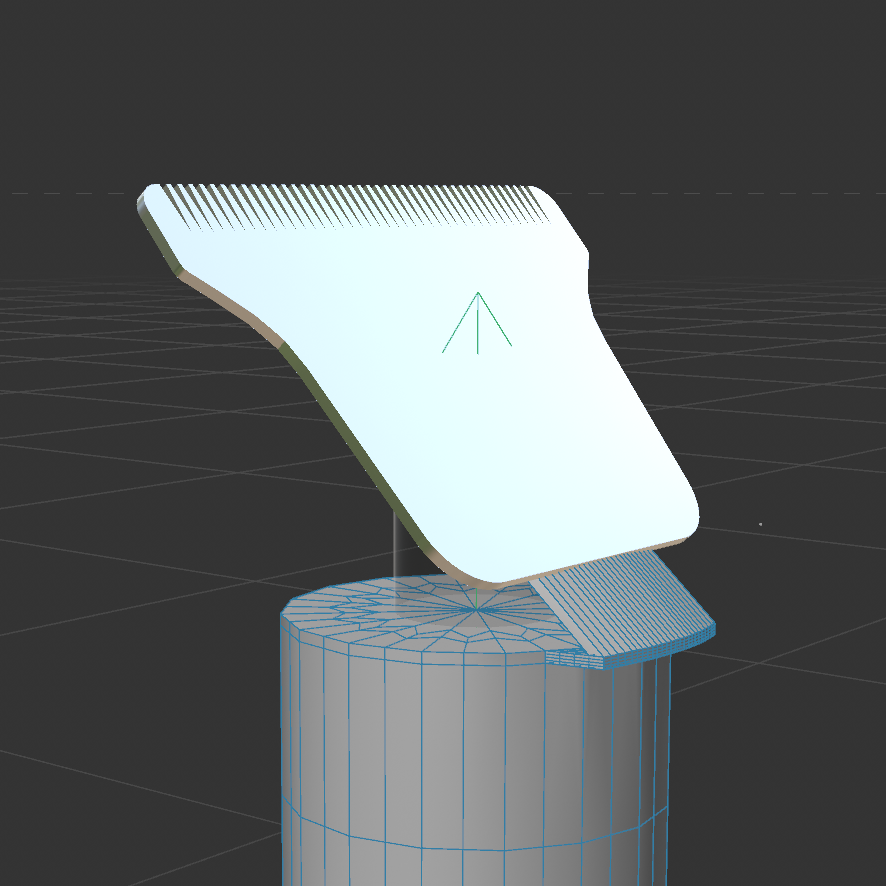

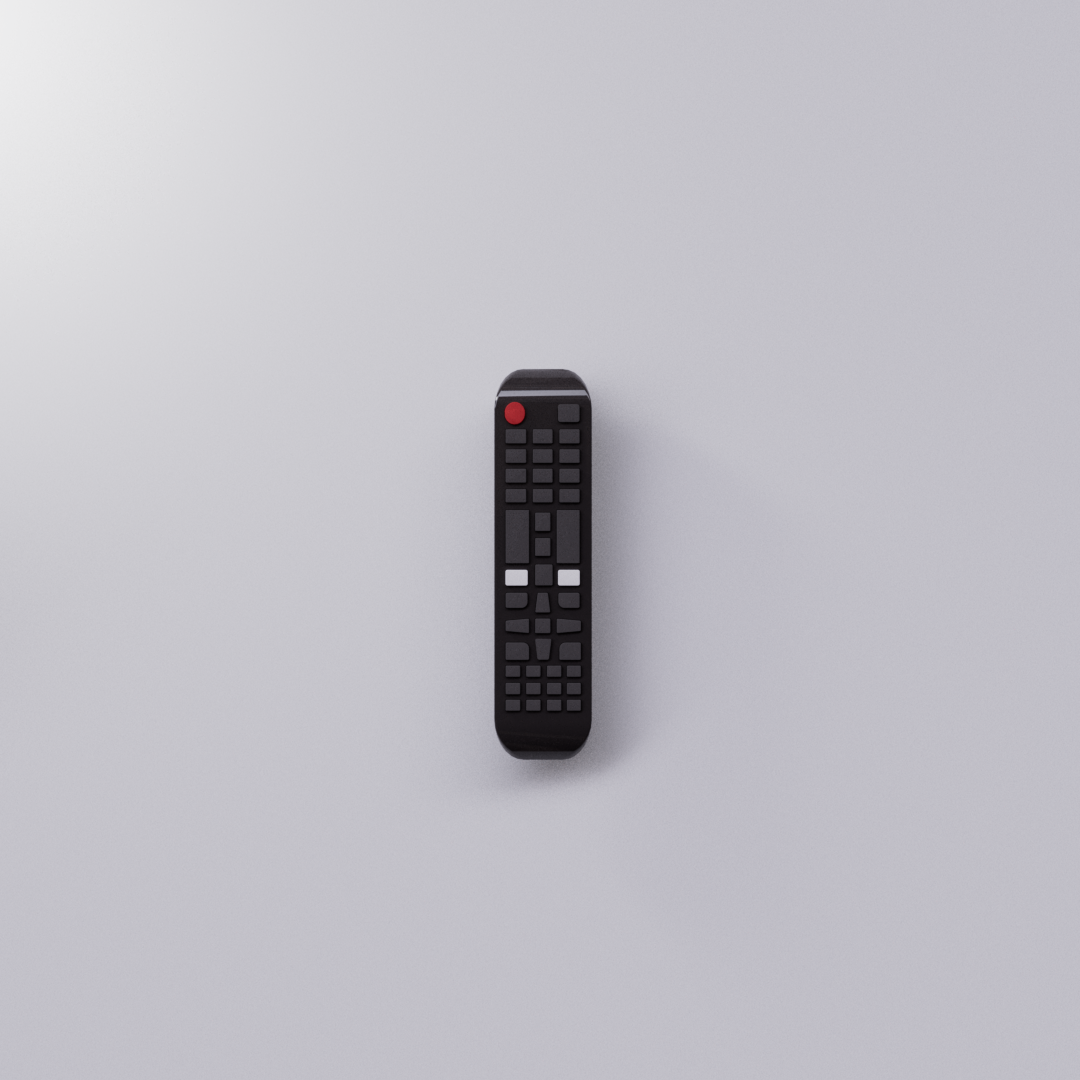

Remote model: body curves detail Remote model: body curves detail Remote model: recessed buttons detail Hair trimmer Samsung remote Remote model: buttons process Hair trimmer model: boolean operation Hair trimmer model: button creation through polygon editing Hair trimmer model: button creation through polygon editing Hair trimmer model: extrude process Hair trimmer: blade detail Hair trimmer: material exploration Remote model: button process Remote model: button process Remote model: button process Hair trimmer: SVG tracing process Remote model: render Remote model: render Funnel model: render Funnel model: render Remote model: render Remote model: render Hair trimmer model: render Hair trimmer model: render Hair trimmer model: render

Material Workshop 1

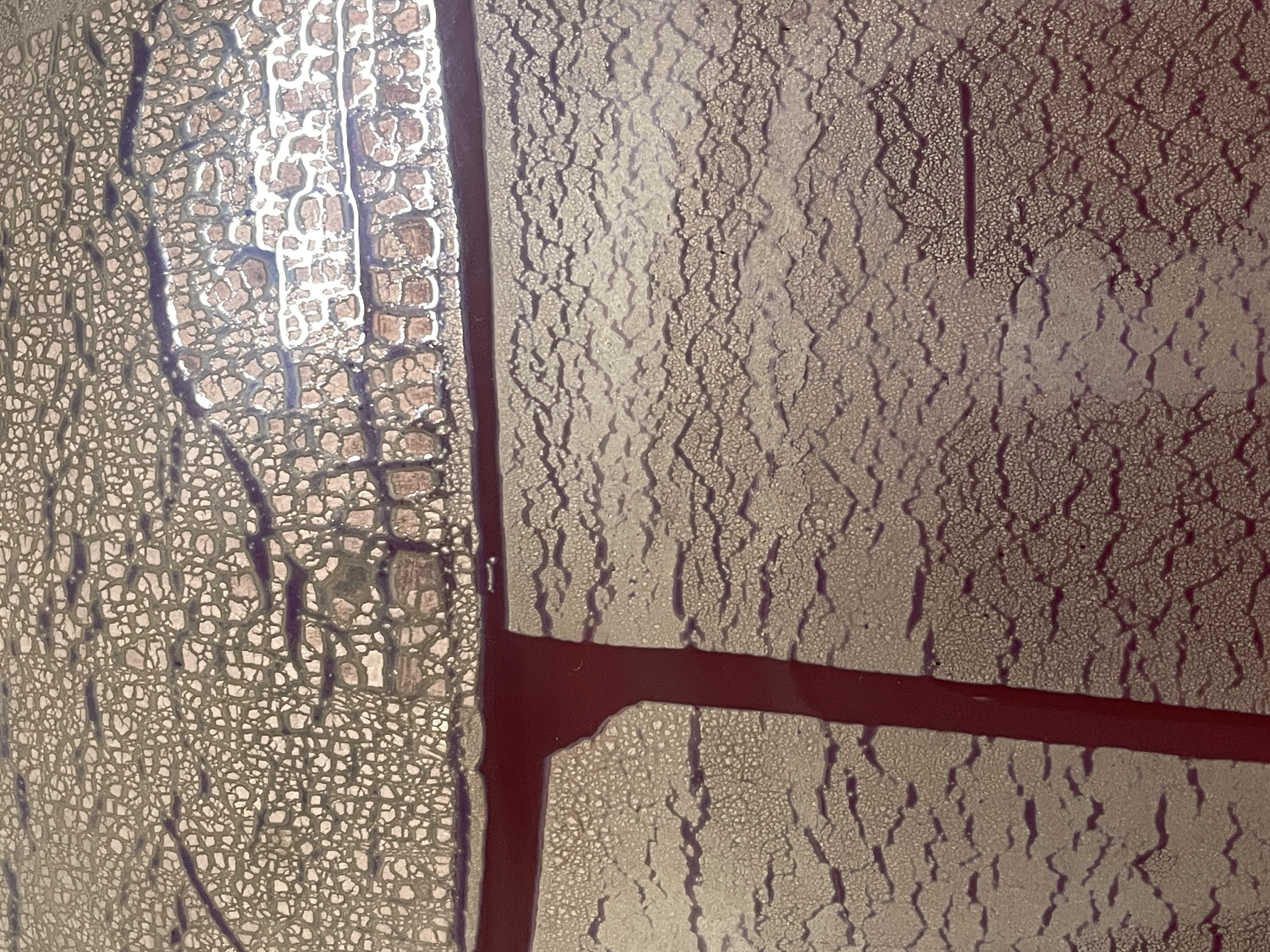

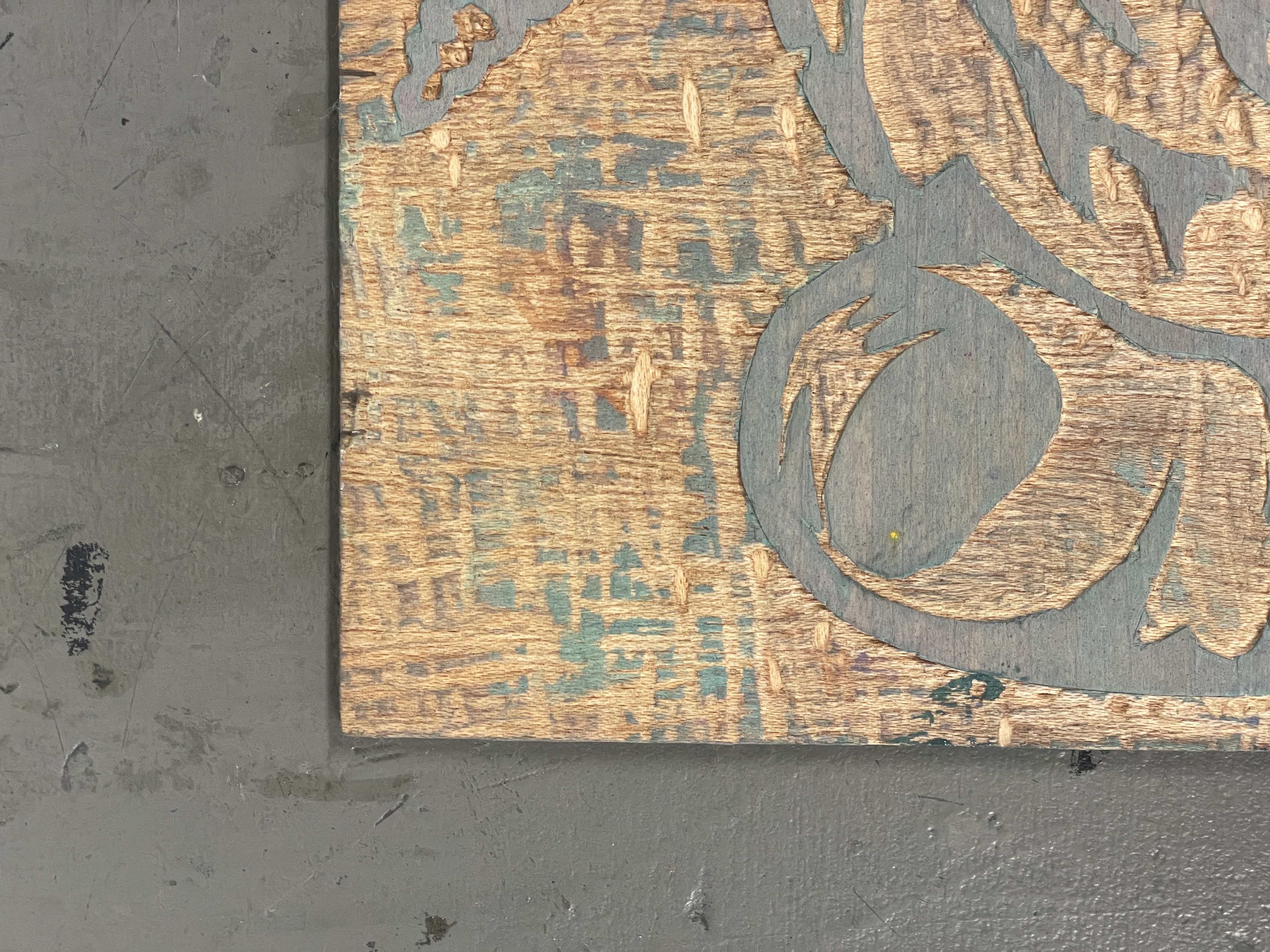

Wooden printing block. Ridgid but porous. This was used with ink to print in place of a rubber block traditionally used.<br>Program: Craft and Design (Industrial Design) Glass pallete. Used to hold ink for printing, for mixing and/or rolling out flat. This is used in the printing process because the material is hard, flat and not porous at all. Perfect for transferring ink.<br>Program: Craft and Design (Multidisciplinary) Ceramic vase. A product from a student displayed in a display case. Ceramic is very hard yet brittle, good for food/water vessels as they are also easily sanitized and cleaned. This is because once it is glaze fired it has a non-porous coating that bacteria can easily be cleaned from. Unlike non-coated ceramics which are very porous. This particular vase has layers of colour and some sort of metallic layer under the glaze as well creating an interesting aesthetic.<br>Program: Craft and Design (Ceramics)

Material Workshop 2

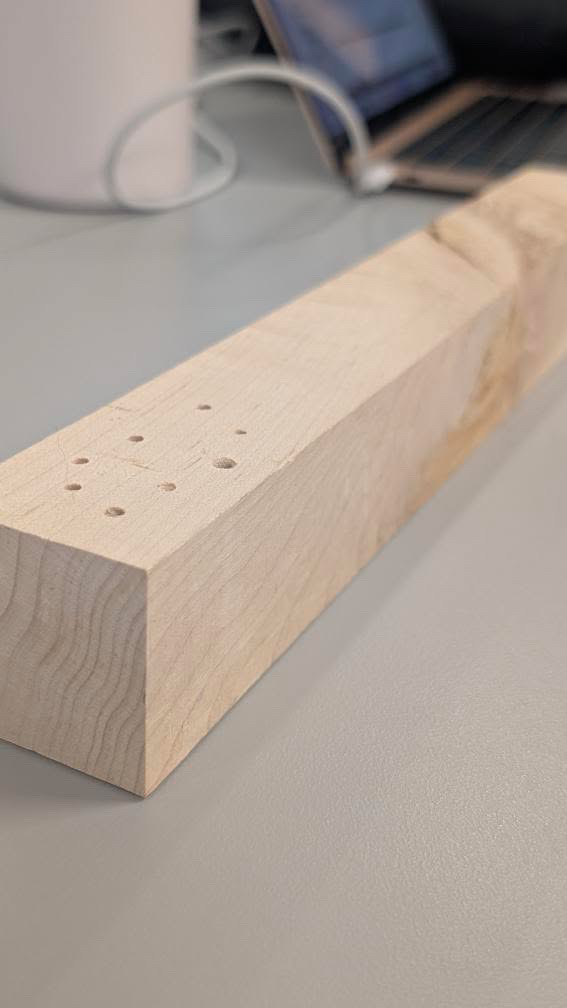

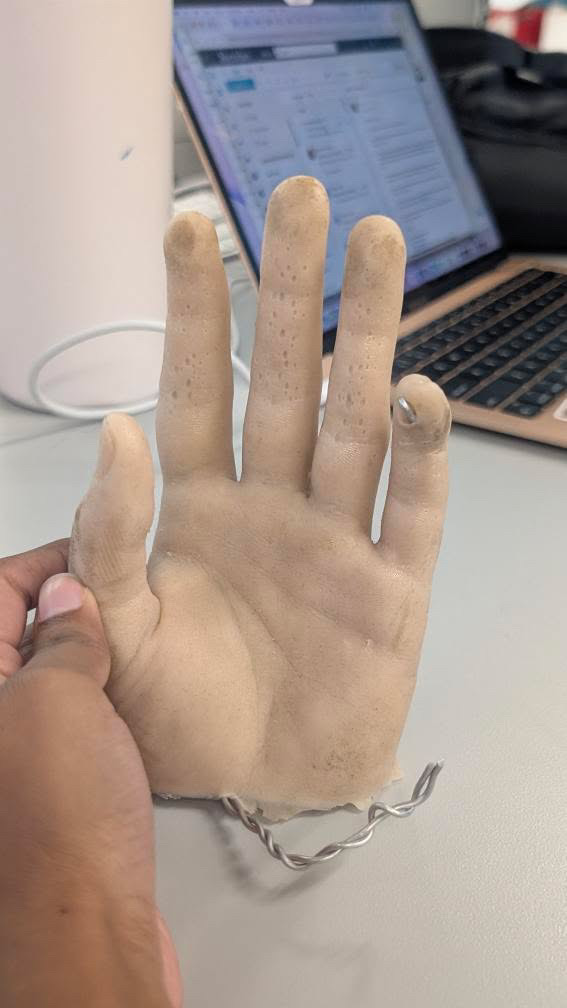

Fake hand model<br>Material state: refined<br>Colour: Beige<br>Rigidity: Low(Very plyable as intended to bend)<br>Surface Texture: Skin-like, slightly rough yet mooth and soft like dry skin.<br>Material use: Tool for form drawing or product display 2x2 Lumber<br>Material state: refined (cut and shaped into lumber from raw wood)<br>Colour: Light beige<br>Rigidity: High<br>Surface Texture: Rough and porous<br>Material use: Construction material for various projects. Either building, furniture or almost anything can be made from wood Twine<br>Material state: refined (processed from fibres twisted into twine)<br>Colour: Brown and beige<br>Rigidity: Low<br>Surface texture: Rough-ish yet soft and playable<br>Material use: Tool, used as rope or decoratively

Project 1

Project 1 Models

Published 3D Model 1

Hair Trimmer

Published 3D Model 2

TV Remote

Published 3D Model 3

Funnel

×
